PdfSharp.Pdf.AcroForms.PdfAcroField.Keys Class Reference

Predefined keys of this dictionary. The description comes from PDF 1.4 Reference. More...

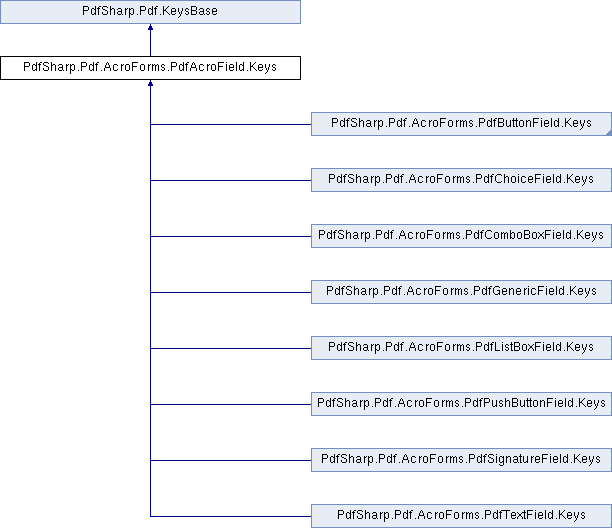

Inheritance diagram for PdfSharp.Pdf.AcroForms.PdfAcroField.Keys:

Static Public Attributes
const string	FT = "/FT"
	(Required for terminal fields; inheritable) The type of field that this dictionary describes: Btn Button Tx Text Ch Choice Sig (PDF 1.3) Signature Note: This entry may be present in a nonterminal field (one whose descendants are themselves fields) in order to provide an inheritable FT value. However, a nonterminal field does not logically have a type of its own; it is merely a container for inheritable attributes that are intended for descendant terminal fields of any type. More...
const string	Parent = "/Parent"
	(Required if this field is the child of another in the field hierarchy; absent otherwise) The field that is the immediate parent of this one (the field, if any, whose Kids array includes this field). A field can have at most one parent; that is, it can be included in the Kids array of at most one other field. More...
const string	Kids = "/Kids"
	(Optional) An array of indirect references to the immediate children of this field. More...
const string	T = "/T"
	(Optional) The partial field name. More...
const string	TU = "/TU"
	(Optional; PDF 1.3) An alternate field name, to be used in place of the actual field name wherever the field must be identified in the user interface (such as in error or status messages referring to the field). This text is also useful when extracting the document’s contents in support of accessibility to disabled users or for other purposes. More...
const string	TM = "/TM"
	(Optional; PDF 1.3) The mapping name to be used when exporting interactive form field data from the document. More...
const string	Ff = "/Ff"
	(Optional; inheritable) A set of flags specifying various characteristics of the field. Default value: 0. More...
const string	V = "/V"
	(Optional; inheritable) The field’s value, whose format varies depending on the field type; see the descriptions of individual field types for further information. More...
const string	DV = "/DV"
	(Optional; inheritable) The default value to which the field reverts when a reset-form action is executed. The format of this value is the same as that of V. More...
const string	AA = "/AA"
	(Optional; PDF 1.2) An additional-actions dictionary defining the field’s behavior in response to various trigger events. This entry has exactly the same meaning as the AA entry in an annotation dictionary. More...
const string	DR = "/DR"
	(Required; inheritable) A resource dictionary containing default resources (such as fonts, patterns, or color spaces) to be used by the appearance stream. At a minimum, this dictionary must contain a Font entry specifying the resource name and font dictionary of the default font for displaying the field’s text. More...
const string	DA = "/DA"
	(Required; inheritable) The default appearance string, containing a sequence of valid page-content graphics or text state operators defining such properties as the field’s text size and color. More...
const string	Q = "/Q"
	(Optional; inheritable) A code specifying the form of quadding (justification) to be used in displaying the text: 0 Left-justified 1 Centered 2 Right-justified Default value: 0 (left-justified). More...

Detailed Description

Predefined keys of this dictionary. The description comes from PDF 1.4 Reference.

Member Data Documentation

AA

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.AA = "/AA"

static

(Optional; PDF 1.2) An additional-actions dictionary defining the field’s behavior in response to various trigger events. This entry has exactly the same meaning as the AA entry in an annotation dictionary.

DA

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.DA = "/DA"

static

(Required; inheritable) The default appearance string, containing a sequence of valid page-content graphics or text state operators defining such properties as the field’s text size and color.

DR

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.DR = "/DR"

static

(Required; inheritable) A resource dictionary containing default resources (such as fonts, patterns, or color spaces) to be used by the appearance stream. At a minimum, this dictionary must contain a Font entry specifying the resource name and font dictionary of the default font for displaying the field’s text.

DV

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.DV = "/DV"

static

(Optional; inheritable) The default value to which the field reverts when a reset-form action is executed. The format of this value is the same as that of V.

Ff

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.Ff = "/Ff"

static

(Optional; inheritable) A set of flags specifying various characteristics of the field. Default value: 0.

FT

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.FT = "/FT"

static

(Required for terminal fields; inheritable) The type of field that this dictionary describes: Btn Button Tx Text Ch Choice Sig (PDF 1.3) Signature Note: This entry may be present in a nonterminal field (one whose descendants are themselves fields) in order to provide an inheritable FT value. However, a nonterminal field does not logically have a type of its own; it is merely a container for inheritable attributes that are intended for descendant terminal fields of any type.

Kids

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.Kids = "/Kids"

static

(Optional) An array of indirect references to the immediate children of this field.

Parent

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.Parent = "/Parent"

static

(Required if this field is the child of another in the field hierarchy; absent otherwise) The field that is the immediate parent of this one (the field, if any, whose Kids array includes this field). A field can have at most one parent; that is, it can be included in the Kids array of at most one other field.

Q

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.Q = "/Q"

static

(Optional; inheritable) A code specifying the form of quadding (justification) to be used in displaying the text: 0 Left-justified 1 Centered 2 Right-justified Default value: 0 (left-justified).

T

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.T = "/T"

static

(Optional) The partial field name.

TM

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.TM = "/TM"

static

(Optional; PDF 1.3) The mapping name to be used when exporting interactive form field data from the document.

TU

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.TU = "/TU"

static

(Optional; PDF 1.3) An alternate field name, to be used in place of the actual field name wherever the field must be identified in the user interface (such as in error or status messages referring to the field). This text is also useful when extracting the document’s contents in support of accessibility to disabled users or for other purposes.

V

const string PdfSharp.Pdf.AcroForms.PdfAcroField.Keys.V = "/V"

static

(Optional; inheritable) The field’s value, whose format varies depending on the field type; see the descriptions of individual field types for further information.

---

The documentation for this class was generated from the following file:

• PdfSharp.Pdf.AcroForms/PdfAcroField.cs
