A Section is a part of a Document containing other Sections, Paragraphs, List and/or Tables. More...

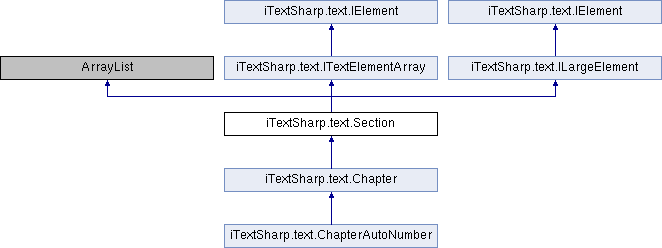

Inheritance diagram for iTextSharp.text.Section:

Public Member Functions
bool	Process (IElementListener listener)
	Processes the element by adding it (or the different parts) to an IElementListener. More...

bool	IsContent ()

virtual bool	IsNestable ()

void	Add (int index, Object o)
	Adds a Paragraph, List or Table to this Section. More...

new bool	Add (Object o)
	Adds a Paragraph, List, Table or another Section to this Section. More...

bool	AddAll (ICollection collection)
	Adds a collection of Elements to this Section. More...

virtual Section	AddSection (float indentation, Paragraph title, int numberDepth)
	Creates a Section, adds it to this Section and returns it. More...

virtual Section	AddSection (float indentation, Paragraph title)
	Creates a Section, adds it to this Section and returns it. More...

virtual Section	AddSection (Paragraph title, int numberDepth)
	Creates a Section, add it to this Section and returns it. More...

MarkedSection	AddMarkedSection ()

virtual Section	AddSection (Paragraph title)
	Creates a Section, adds it to this Section and returns it. More...

virtual Section	AddSection (float indentation, string title, int numberDepth)
	Adds a Section to this Section and returns it. More...

virtual Section	AddSection (string title, int numberDepth)
	Adds a Section to this Section and returns it. More...

virtual Section	AddSection (float indentation, string title)
	Adds a Section to this Section and returns it. More...

virtual Section	AddSection (string title)
	Adds a Section to this Section and returns it. More...

void	Set (Properties attributes)
	Alters the attributes of this Section. More...

bool	IsChapter ()
	Checks if this object is a Chapter. More...

bool	IsSection ()
	Checks if this object is a Section. More...

Paragraph	GetBookmarkTitle ()

override string	ToString ()
	Gets the content of the text element. More...

void	SetChapterNumber (int number)

void	FlushContent ()

void	NewPage ()

Static Public Member Functions
static Paragraph	ConstructTitle (Paragraph title, ArrayList numbers, int numberDepth, int numberStyle)

static bool	IsTitle (string tag)
	Checks if a given tag corresponds with a title tag for this object. More...

static bool	IsTag (string tag)
	Checks if a given tag corresponds with this object. More...

Static Public Attributes
const int	NUMBERSTYLE_DOTTED = 0

const int	NUMBERSTYLE_DOTTED_WITHOUT_FINAL_DOT = 1

Protected Attributes
Paragraph	title
	This is the title of this section. More...

int	numberDepth

int	numberStyle = NUMBERSTYLE_DOTTED
	summary> The indentation of this section on the left side. More...

float	indentationLeft
	summary> The indentation of this section on the right side. More...

float	indentationRight
	summary> The additional indentation of the content of this section. More...

float	indentation
	summary> This is the number of subsections. More...

int	subsections = 0
	summary> This is the complete list of sectionnumbers of this section and the parents of this section. More...

bool	complete = true

bool	addedCompletely = false

bool	notAddedYet = true
	summary> false if the bookmark children are not visible More...

bool	bookmarkOpen = true

bool	triggerNewPage = false

string	bookmarkTitle

Properties
virtual int	Type `[get]`
	Gets the type of the text element. More...

ArrayList	Chunks `[get]`
	Gets all the chunks in this element. More...

Paragraph	Title `[get, set]`
	Get/set the title of this section More...

int	NumberStyle `[get, set]`

int	NumberDepth `[get, set]`
	Get/set the numberdepth of this Section. More...

float	IndentationLeft `[get, set]`
	Get/set the indentation of this Section on the left side. More...

float	IndentationRight `[get, set]`
	Get/set the indentation of this Section on the right side. More...

float	Indentation `[get, set]`
	Get/set the indentation of the content of this Section. More...

int	Depth `[get]`
	Returns the depth of this section. More...

bool	BookmarkOpen `[get, set]`
	Get/set the bookmark More...

String	BookmarkTitle `[set]`

virtual bool	TriggerNewPage `[get, set]`

bool	NotAddedYet `[get, set]`

bool	AddedCompletely `[get, set]`

bool	ElementComplete `[get, set]`

Properties inherited from iTextSharp.text.IElement
int	Type `[get]`
	Gets the type of the text element. More...

ArrayList	Chunks `[get]`
	Gets all the chunks in this element. More...

Properties inherited from iTextSharp.text.ILargeElement
bool	ElementComplete `[get, set]`

Detailed Description

A Section is a part of a Document containing other Sections, Paragraphs, List and/or Tables.

You can not construct a Section yourself. You will have to ask an instance of Section to the Chapter or Section to which you want to add the new Section.

Paragraph title2 = new Paragraph("This is Chapter 2", FontFactory.GetFont(FontFactory.HELVETICA, 18, Font.BOLDITALIC, new Color(0, 0, 255)));
Chapter chapter2 = new Chapter(title2, 2);
Paragraph someText = new Paragraph("This is some text");
chapter2.Add(someText);
Paragraph title21 = new Paragraph("This is Section 1 in Chapter 2", FontFactory.GetFont(FontFactory.HELVETICA, 16, Font.BOLD, new Color(255, 0, 0)));
<strong>Section section1 = chapter2.AddSection(title21);</strong>
Paragraph someSectionText = new Paragraph("This is some silly paragraph in a chapter and/or section. It contains some text to test the functionality of Chapters and Section.");
<strong>section1.Add(someSectionText);</strong>
Paragraph title211 = new Paragraph("This is SubSection 1 in Section 1 in Chapter 2", FontFactory.GetFont(FontFactory.HELVETICA, 14, Font.BOLD, new Color(255, 0, 0)));
<strong>Section section11 = section1.AddSection(40, title211, 2);
section11.Add(someSectionText);</strong>strong>

Member Function Documentation

◆ Add() [1/2]

void iTextSharp.text.Section.Add	(	int	index,
		Object	o
	)

Adds a Paragraph, List or Table to this Section.

Parameters

index	index at which the specified element is to be inserted
o	an object of type Paragraph, List or Table

◆ Add() [2/2]

new bool iTextSharp.text.Section.Add ( Object o )

Adds a Paragraph, List, Table or another Section to this Section.

Parameters

o	an object of type Paragraph, List, Table or another Section

Returns: a bool

Implements iTextSharp.text.ITextElementArray.

◆ AddAll()

bool iTextSharp.text.Section.AddAll ( ICollection collection )

Adds a collection of Elements to this Section.

Parameters

collection a collection of Paragraphs, Lists and/or Tables

Returns: true if the action succeeded, false if not.

◆ AddMarkedSection()

MarkedSection iTextSharp.text.Section.AddMarkedSection ( )

Adds a marked section. For use in class MarkedSection only!

◆ AddSection() [1/8]

virtual Section iTextSharp.text.Section.AddSection	(	float	indentation,
		Paragraph	title
	)

virtual

Creates a Section, adds it to this Section and returns it.

Parameters

indentation	the indentation of the new section
title	the title of the new section

Returns: the newly added Section

◆ AddSection() [2/8]

virtual Section iTextSharp.text.Section.AddSection	(	float	indentation,
		Paragraph	title,
		int	numberDepth
	)

virtual

Creates a Section, adds it to this Section and returns it.

Parameters

indentation	the indentation of the new section
title	the title of the new section
numberDepth	the numberDepth of the section

Returns: the newly added Section

◆ AddSection() [3/8]

virtual Section iTextSharp.text.Section.AddSection	(	float	indentation,
		string	title
	)

virtual

Adds a Section to this Section and returns it.

Parameters

indentation	the indentation of the new section
title	the title of the new section

Returns: the newly added Section

◆ AddSection() [4/8]

virtual Section iTextSharp.text.Section.AddSection	(	float	indentation,
		string	title,
		int	numberDepth
	)

virtual

Adds a Section to this Section and returns it.

Parameters

indentation	the indentation of the new section
title	the title of the new section
numberDepth	the numberDepth of the section

Parameters

indentation	the indentation of the new section
title	the title of the new section
numberDepth	the numberDepth of the section

Returns: the newly added Section

◆ AddSection() [5/8]

virtual Section iTextSharp.text.Section.AddSection ( Paragraph title )

virtual

Creates a Section, adds it to this Section and returns it.

Parameters

title the title of the new section

Returns: the newly added Section

Reimplemented in iTextSharp.text.ChapterAutoNumber.

◆ AddSection() [6/8]

virtual Section iTextSharp.text.Section.AddSection	(	Paragraph	title,
		int	numberDepth
	)

virtual

Creates a Section, add it to this Section and returns it.

Parameters

title	the title of the new section
numberDepth	the numberDepth of the section

Returns: the newly added Section

◆ AddSection() [7/8]

virtual Section iTextSharp.text.Section.AddSection ( string title )

virtual

Adds a Section to this Section and returns it.

Parameters

title the title of the new section

Returns: the newly added Section

◆ AddSection() [8/8]

virtual Section iTextSharp.text.Section.AddSection	(	string	title,
		int	numberDepth
	)

virtual

Adds a Section to this Section and returns it.

Parameters

title	the title of the new section
numberDepth	the numberDepth of the section

Parameters

title	the title of the new section
numberDepth	the numberDepth of the section

Returns: the newly added Section

◆ ConstructTitle()

static Paragraph iTextSharp.text.Section.ConstructTitle	(	Paragraph	title,
		ArrayList	numbers,
		int	numberDepth,
		int	numberStyle
	)

static

Constructs a Paragraph that will be used as title for a Section or Chapter.

Parameters

title	the title of the section
numbers	a list of sectionnumbers
numberDepth	how many numbers have to be shown
numberStyle	the numbering style

Returns: a Paragraph object

Since: iText 2.0.8

◆ FlushContent()

void iTextSharp.text.Section.FlushContent ( )

Since: iText 2.0.8

See also: com.lowagie.text.LargeElement::flushContent()

Implements iTextSharp.text.ILargeElement.

◆ GetBookmarkTitle()

Paragraph iTextSharp.text.Section.GetBookmarkTitle ( )

Gets the bookmark title.

Returns: the bookmark title

◆ IsChapter()

bool iTextSharp.text.Section.IsChapter ( )

Checks if this object is a Chapter.

Returns: true if it is a Chapter, false if it is a Section

◆ IsContent()

bool iTextSharp.text.Section.IsContent ( )

See also: com.lowagie.text.Element::isContent()

Since: iText 2.0.8

Implements iTextSharp.text.IElement.

◆ IsNestable()

virtual bool iTextSharp.text.Section.IsNestable ( )

virtual

See also: com.lowagie.text.Element::isNestable()

Since: iText 2.0.8

Implements iTextSharp.text.IElement.

Reimplemented in iTextSharp.text.Chapter.

◆ IsSection()

bool iTextSharp.text.Section.IsSection ( )

Checks if this object is a Section.

Returns: true if it is a Section, false if it is a Chapter.

◆ IsTag()

static bool iTextSharp.text.Section.IsTag ( string tag )

static

Checks if a given tag corresponds with this object.

Parameters

tag	the given tag

Returns: true if the tag corresponds

◆ IsTitle()

static bool iTextSharp.text.Section.IsTitle ( string tag )

static

Checks if a given tag corresponds with a title tag for this object.

Parameters

tag	the given tag

Returns: true if the tag corresponds

◆ NewPage()

void iTextSharp.text.Section.NewPage ( )

Adds a new page to the section.

Since: 2.1.1

◆ Process()

bool iTextSharp.text.Section.Process ( IElementListener listener )

Processes the element by adding it (or the different parts) to an IElementListener.

Parameters

listener the IElementListener

Returns: true if the element was processed successfully

Implements iTextSharp.text.IElement.

◆ Set()

void iTextSharp.text.Section.Set ( Properties attributes )

Alters the attributes of this Section.

Parameters

attributes the attributes

◆ SetChapterNumber()

void iTextSharp.text.Section.SetChapterNumber ( int number )

Changes the Chapter number.

◆ ToString()

override string iTextSharp.text.Section.ToString ( )

Gets the content of the text element.

Returns: the content of the text element

Implements iTextSharp.text.IElement.

Member Data Documentation

◆ addedCompletely

bool iTextSharp.text.Section.addedCompletely = false

protected

Indicates if the Section was added completely to the document.

Since: iText 2.0.8

◆ bookmarkOpen

bool iTextSharp.text.Section.bookmarkOpen = true

protected

◆ bookmarkTitle

string iTextSharp.text.Section.bookmarkTitle

protected

The bookmark title if different from the content title

◆ complete

bool iTextSharp.text.Section.complete = true

protected

Indicates if the Section will be complete once added to the document.

Since: iText 2.0.8

◆ indentation

float iTextSharp.text.Section.indentation

protected

summary> This is the number of subsections.

◆ indentationLeft

float iTextSharp.text.Section.indentationLeft

protected

summary> The indentation of this section on the right side.

◆ indentationRight

float iTextSharp.text.Section.indentationRight

protected

summary> The additional indentation of the content of this section.

◆ notAddedYet

bool iTextSharp.text.Section.notAddedYet = true

protected

summary> false if the bookmark children are not visible

Indicates if this is the first time the section was added.

Since: iText 2.0.8

◆ numberDepth

int iTextSharp.text.Section.numberDepth

protected

◆ numberStyle

int iTextSharp.text.Section.numberStyle = NUMBERSTYLE_DOTTED

protected

summary> The indentation of this section on the left side.

The style for sectionnumbers.

Since: iText 2.0.8

◆ NUMBERSTYLE_DOTTED

const int iTextSharp.text.Section.NUMBERSTYLE_DOTTED = 0

static

A possible number style. The default number style: "1.2.3."

Since: iText 2.0.8

◆ NUMBERSTYLE_DOTTED_WITHOUT_FINAL_DOT

const int iTextSharp.text.Section.NUMBERSTYLE_DOTTED_WITHOUT_FINAL_DOT = 1

static

A possible number style. For instance: "1.2.3"

Since: iText 2.0.8

◆ subsections

int iTextSharp.text.Section.subsections = 0

protected

summary> This is the complete list of sectionnumbers of this section and the parents of this section.

◆ title

Paragraph iTextSharp.text.Section.title

protected

This is the title of this section.

summary> This is the number of sectionnumbers that has to be shown before the section title.

◆ triggerNewPage

bool iTextSharp.text.Section.triggerNewPage = false

protected

true if the section has to trigger a new page

Property Documentation

◆ AddedCompletely

bool iTextSharp.text.Section.AddedCompletely

getsetprotected

See also: com.lowagie.text.LargeElement::isAddedCompletely()

Since: iText 2.0.8

◆ BookmarkOpen

bool iTextSharp.text.Section.BookmarkOpen

getset

Get/set the bookmark

a bool

◆ BookmarkTitle

String iTextSharp.text.Section.BookmarkTitle

set

Sets the bookmark title. The bookmark title is the same as the section title but can be changed with this method.

Parameters

bookmarkTitle the bookmark title

◆ Chunks

ArrayList iTextSharp.text.Section.Chunks

get

Gets all the chunks in this element.

an ArrayList

◆ Depth

int iTextSharp.text.Section.Depth

get

Returns the depth of this section.

the depth

◆ ElementComplete

bool iTextSharp.text.Section.ElementComplete

getset

Since: iText 2.0.8

See also: com.lowagie.text.LargeElement::isComplete()

◆ Indentation

float iTextSharp.text.Section.Indentation

getset

Get/set the indentation of the content of this Section.

the indentation

◆ IndentationLeft

float iTextSharp.text.Section.IndentationLeft

getset

Get/set the indentation of this Section on the left side.

the indentation

◆ IndentationRight

float iTextSharp.text.Section.IndentationRight

getset

Get/set the indentation of this Section on the right side.

the indentation

◆ NotAddedYet

bool iTextSharp.text.Section.NotAddedYet

getset

Indicates if this is the first time the section is added.

Since: iText2.0.8

Returns: true if the section wasn't added yet

◆ NumberDepth

int iTextSharp.text.Section.NumberDepth

getset

Get/set the numberdepth of this Section.

a int

◆ NumberStyle

int iTextSharp.text.Section.NumberStyle

getset

Sets the style for numbering sections. Possible values are NUMBERSTYLE_DOTTED: 1.2.3. (the default) or NUMBERSTYLE_DOTTED_WITHOUT_FINAL_DOT: 1.2.3

Since: iText 2.0.8

◆ Title

Paragraph iTextSharp.text.Section.Title

getset

Get/set the title of this section

a Paragraph

◆ TriggerNewPage

virtual bool iTextSharp.text.Section.TriggerNewPage

getset

◆ Type

virtual int iTextSharp.text.Section.Type

get

Gets the type of the text element.

a type

The documentation for this class was generated from the following file:

src/core/iTextSharp/text/Section.cs

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Properties

Detailed Description

Member Function Documentation

◆ Add() [1/2]

◆ Add() [2/2]

◆ AddAll()

◆ AddMarkedSection()

◆ AddSection() [1/8]

◆ AddSection() [2/8]

◆ AddSection() [3/8]

◆ AddSection() [4/8]

◆ AddSection() [5/8]

◆ AddSection() [6/8]

◆ AddSection() [7/8]

◆ AddSection() [8/8]

◆ ConstructTitle()

◆ FlushContent()

◆ GetBookmarkTitle()

◆ IsChapter()

◆ IsContent()

◆ IsNestable()

◆ IsSection()

◆ IsTag()

◆ IsTitle()

◆ NewPage()

◆ Process()

◆ Set()

◆ SetChapterNumber()

◆ ToString()

Member Data Documentation

◆ addedCompletely

◆ bookmarkOpen

◆ bookmarkTitle

◆ complete

◆ indentation

◆ indentationLeft

◆ indentationRight

◆ notAddedYet

◆ numberDepth

◆ numberStyle

◆ NUMBERSTYLE_DOTTED

◆ NUMBERSTYLE_DOTTED_WITHOUT_FINAL_DOT

◆ subsections

◆ title

◆ triggerNewPage

Property Documentation

◆ AddedCompletely

◆ BookmarkOpen

◆ BookmarkTitle

◆ Chunks

◆ Depth

◆ ElementComplete

◆ Indentation

◆ IndentationLeft

◆ IndentationRight

◆ NotAddedYet

◆ NumberDepth

◆ NumberStyle

◆ Title

◆ TriggerNewPage

◆ Type
