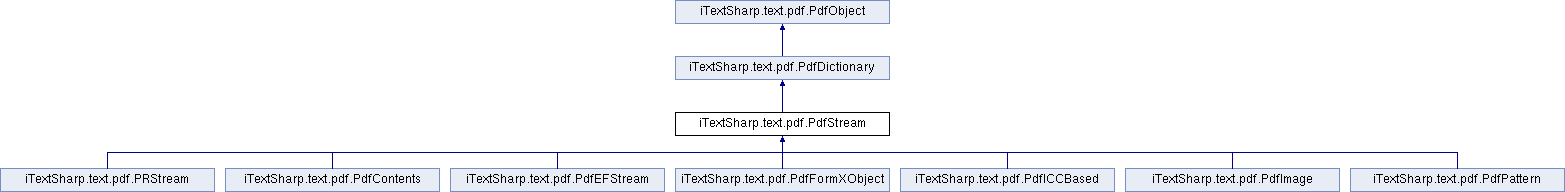

Inheritance diagram for iTextSharp.text.pdf.PdfStream:

Public Member Functions
	PdfStream (byte[] bytes)

	PdfStream (Stream inputStream, PdfWriter writer)

void	WriteLength ()

void	FlateCompress ()

void	FlateCompress (int compressionLevel)

override void	ToPdf (PdfWriter writer, Stream os)

void	WriteContent (Stream os)

override String	ToString ()

Public Member Functions inherited from iTextSharp.text.pdf.PdfDictionary
	PdfDictionary ()

	PdfDictionary (PdfName type)

void	Put (PdfName key, PdfObject value)

void	PutEx (PdfName key, PdfObject value)

void	Remove (PdfName key)

PdfObject	Get (PdfName key)

bool	IsFont ()

bool	IsPage ()

bool	IsPages ()

bool	IsCatalog ()

bool	IsOutlineTree ()

void	Merge (PdfDictionary other)

void	MergeDifferent (PdfDictionary other)

bool	Contains (PdfName key)

virtual IDictionaryEnumerator	GetEnumerator ()

override String	ToString ()

PdfObject	GetDirectObject (PdfName key)

PdfDictionary	GetAsDict (PdfName key)

PdfArray	GetAsArray (PdfName key)

PdfStream	GetAsStream (PdfName key)

PdfString	GetAsString (PdfName key)

PdfNumber	GetAsNumber (PdfName key)

PdfName	GetAsName (PdfName key)

PdfBoolean	GetAsBoolean (PdfName key)

PdfIndirectReference	GetAsIndirectObject (PdfName key)

Public Member Functions inherited from iTextSharp.text.pdf.PdfObject
virtual byte[]	GetBytes ()

bool	CanBeInObjStm ()

override string	ToString ()

bool	IsNull ()

bool	IsBoolean ()

bool	IsNumber ()

bool	IsString ()

bool	IsName ()

bool	IsArray ()

bool	IsDictionary ()

bool	IsStream ()

bool	IsIndirect ()

Static Public Attributes
const int	DEFAULT_COMPRESSION = -1

const int	NO_COMPRESSION = 0

const int	BEST_SPEED = 1

const int	BEST_COMPRESSION = 9

Static Public Attributes inherited from iTextSharp.text.pdf.PdfDictionary
static PdfName	FONT = PdfName.FONT

static PdfName	OUTLINES = PdfName.OUTLINES

static PdfName	PAGE = PdfName.PAGE

static PdfName	PAGES = PdfName.PAGES

static PdfName	CATALOG = PdfName.CATALOG

Static Public Attributes inherited from iTextSharp.text.pdf.PdfObject
const int	BOOLEAN = 1

const int	NUMBER = 2

const int	STRING = 3

const int	NAME = 4

const int	ARRAY = 5

const int	DICTIONARY = 6

const int	STREAM = 7

const int	NULL = 8

const int	INDIRECT = 10

const string	NOTHING = ""

const string	TEXT_PDFDOCENCODING = "PDF"

const string	TEXT_UNICODE = "UnicodeBig"

Protected Member Functions
	PdfStream ()

virtual void	SuperToPdf (PdfWriter writer, Stream os)

Protected Member Functions inherited from iTextSharp.text.pdf.PdfObject
	PdfObject (int type)

	PdfObject (int type, string content)

	PdfObject (int type, byte[] bytes)

Protected Attributes
bool	compressed = false

int	compressionLevel = NO_COMPRESSION

MemoryStream	streamBytes = null

Stream	inputStream

PdfIndirectReference	iref

int	inputStreamLength = -1

PdfWriter	writer

int	rawLength

Protected Attributes inherited from iTextSharp.text.pdf.PdfObject
byte[]	bytes

int	type

PRIndirectReference	indRef

Properties
int	RawLength `[get]`

Properties inherited from iTextSharp.text.pdf.PdfDictionary
ICollection	Keys `[get]`

int	Size `[get]`

Properties inherited from iTextSharp.text.pdf.PdfObject
int	Length `[get]`

string	Content `[set]`

int	Type `[get]`

PRIndirectReference	IndRef `[get, set]`

Detailed Description

PdfStream is the Pdf stream object.

A stream, like a string, is a sequence of characters. However, an application can read a small portion of a stream at a time, while a string must be read in its entirety. For this reason, objects with potentially large amounts of data, such as images and page descriptions, are represented as streams.
A stream consists of a dictionary that describes a sequence of characters, followed by the keyword stream, followed by zero or more lines of characters, followed by the keyword endstream.
All streams must be PdfIndirectObjects. The stream dictionary must be a direct object. The keyword stream that follows the stream dictionary should be followed by a carriage return and linefeed or just a linefeed.
Remark: In this version only the FLATEDECODE-filter is supported.
This object is described in the 'Portable Document Format Reference Manual version 1.3' section 4.8 (page 41-53).

See also: PdfObject; PdfDictionary

Constructor & Destructor Documentation

◆ PdfStream() [1/3]

iTextSharp.text.pdf.PdfStream.PdfStream ( byte[] bytes )

Constructs a PdfStream-object.

Parameters

bytes content of the new PdfObject as an array of byte.

◆ PdfStream() [2/3]

iTextSharp.text.pdf.PdfStream.PdfStream	(	Stream	inputStream,
		PdfWriter	writer
	)

Creates an efficient stream. No temporary array is ever created. The InputStream is totally consumed but is not closed. The general usage is:

InputStream in = ...;
PdfStream stream = new PdfStream(in, writer);
stream.FlateCompress();
writer.AddToBody(stream);
stream.WriteLength();
in.Close();

Parameters

inputStream	the data to write to this stream
writer	the `PdfWriter` for this stream

◆ PdfStream() [3/3]

iTextSharp.text.pdf.PdfStream.PdfStream ( )

protected

Constructs a PdfStream-object.

Member Function Documentation

◆ FlateCompress() [1/2]

void iTextSharp.text.pdf.PdfStream.FlateCompress ( )

Compresses the stream.

◆ FlateCompress() [2/2]

void iTextSharp.text.pdf.PdfStream.FlateCompress ( int compressionLevel )

Compresses the stream.

Parameters

compressionLevel the compression level (0 = best speed, 9 = best compression, -1 is default)

Since: 2.1.3

◆ SuperToPdf()

virtual void iTextSharp.text.pdf.PdfStream.SuperToPdf	(	PdfWriter	writer,
		Stream	os
	)

protectedvirtual

◆ ToPdf()

override void iTextSharp.text.pdf.PdfStream.ToPdf	(	PdfWriter	writer,
		Stream	os
	)

virtual

Returns the PDF representation of this PdfDictionary.

Returns: an array of byte

Reimplemented from iTextSharp.text.pdf.PdfDictionary.

Reimplemented in iTextSharp.text.pdf.PRStream.

◆ ToString()

override String iTextSharp.text.pdf.PdfStream.ToString ( )

See also: com.lowagie.text.pdf.PdfObject::toString()

◆ WriteContent()

void iTextSharp.text.pdf.PdfStream.WriteContent ( Stream os )

Writes the data content to an Stream.

Parameters

os	the destination to write to

Exceptions

IOException on error

◆ WriteLength()

void iTextSharp.text.pdf.PdfStream.WriteLength ( )

Writes the stream length to the PdfWriter.

This method must be called and can only be called if the contructor PdfStream(InputStream,PdfWriter) is used to create the stream.

Exceptions

IOException on error

See also: #PdfStream(InputStream,PdfWriter)

Member Data Documentation

◆ BEST_COMPRESSION

const int iTextSharp.text.pdf.PdfStream.BEST_COMPRESSION = 9

static

A possible compression level.

Since: 2.1.3

◆ BEST_SPEED

const int iTextSharp.text.pdf.PdfStream.BEST_SPEED = 1

static

A possible compression level.

Since: 2.1.3

◆ compressed

bool iTextSharp.text.pdf.PdfStream.compressed = false

protected

is the stream compressed?

◆ compressionLevel

int iTextSharp.text.pdf.PdfStream.compressionLevel = NO_COMPRESSION

protected

The level of compression.

Since: 2.1.3

◆ DEFAULT_COMPRESSION

const int iTextSharp.text.pdf.PdfStream.DEFAULT_COMPRESSION = -1

static

A possible compression level.

Since: 2.1.3

◆ inputStream

Stream iTextSharp.text.pdf.PdfStream.inputStream

protected

◆ inputStreamLength

int iTextSharp.text.pdf.PdfStream.inputStreamLength = -1

protected

◆ iref

PdfIndirectReference iTextSharp.text.pdf.PdfStream.iref

protected

◆ NO_COMPRESSION

const int iTextSharp.text.pdf.PdfStream.NO_COMPRESSION = 0

static

A possible compression level.

Since: 2.1.3

◆ rawLength

int iTextSharp.text.pdf.PdfStream.rawLength

protected

◆ streamBytes

MemoryStream iTextSharp.text.pdf.PdfStream.streamBytes = null

protected

◆ writer

PdfWriter iTextSharp.text.pdf.PdfStream.writer

protected

Property Documentation

◆ RawLength

int iTextSharp.text.pdf.PdfStream.RawLength

get

The documentation for this class was generated from the following file:

src/core/iTextSharp/text/pdf/PdfStream.cs
