PdfSharp.Drawing.BarCodes.BarCode Class Referenceabstract
Represents the base class of all bar codes. More...

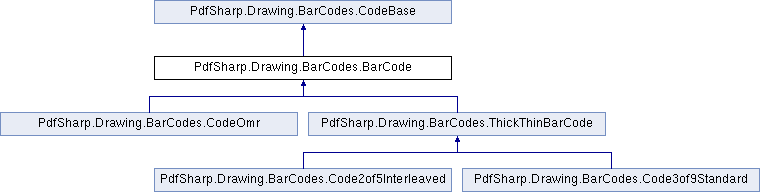

Inheritance diagram for PdfSharp.Drawing.BarCodes.BarCode:
Public Member Functions | |
| BarCode (string text, XSize size, CodeDirection direction) | |
| Initializes a new instance of the BarCode class. More... | |
 Public Member Functions inherited from PdfSharp.Drawing.BarCodes.CodeBase | |
| CodeBase (string text, XSize size, CodeDirection direction) | |
| Initializes a new instance of the CodeBase class. More... | |
Static Public Member Functions | |
| static BarCode | FromType (CodeType type, string text, XSize size, CodeDirection direction) |
| Creates a bar code from the specified code type. More... | |
| static BarCode | FromType (CodeType type, string text, XSize size) |
| Creates a bar code from the specified code type. More... | |
| static BarCode | FromType (CodeType type, string text) |
| Creates a bar code from the specified code type. More... | |
| static BarCode | FromType (CodeType type) |
| Creates a bar code from the specified code type. More... | |
| Static Public Member Functions inherited from PdfSharp.Drawing.BarCodes.CodeBase | |
| static XVector | CalcDistance (AnchorType oldType, AnchorType newType, XSize size) |
| Calculates the distance between an old anchor point and a new anchor point. More... | |
Properties | |
| virtual double | WideNarrowRatio [get, set] |
| When overridden in a derived class gets or sets the wide narrow ratio. More... | |
| TextLocation | TextLocation [get, set] |
| Gets or sets the location of the text next to the bar code. More... | |
| int | DataLength [get, set] |
| Gets or sets the length of the data that defines the bar code. More... | |
| char | StartChar [get, set] |
| Gets or sets the optional start character. More... | |
| char | EndChar [get, set] |
| Gets or sets the optional end character. More... | |
| virtual bool | TurboBit [get, set] |
| Gets or sets a value indicating whether the turbo bit is to be drawn. (A turbo bit is something special to Kern (computer output processing) company (as far as I know)) More... | |
| Properties inherited from PdfSharp.Drawing.BarCodes.CodeBase | |
| XSize | Size [get, set] |
| Gets or sets the size. More... | |
| string | Text [get, set] |
| Gets or sets the text the bar code shall represent. More... | |
| AnchorType | Anchor [get, set] |
| Always MiddleCenter. More... | |
| CodeDirection | Direction [get, set] |
| Gets or sets the drawing direction. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from PdfSharp.Drawing.BarCodes.CodeBase | |
| abstract void | CheckCode (string text) |
| When implemented in a derived class, determines whether the specified string can be used as Text for this bar code type. More... | |
Detailed Description
Represents the base class of all bar codes.
Constructor & Destructor Documentation
◆ BarCode()
| PdfSharp.Drawing.BarCodes.BarCode.BarCode | ( | string | text, |
| XSize | size, | ||
| CodeDirection | direction | ||
| ) |
Initializes a new instance of the BarCode class.
- Parameters
-
text size direction
Member Function Documentation
◆ FromType() [1/4]
Creates a bar code from the specified code type.
◆ FromType() [2/4]
Creates a bar code from the specified code type.
◆ FromType() [3/4]
|
static |
Creates a bar code from the specified code type.
◆ FromType() [4/4]
|
static |
Creates a bar code from the specified code type.
Property Documentation
◆ DataLength
|
getset |
Gets or sets the length of the data that defines the bar code.
◆ EndChar
|
getset |
Gets or sets the optional end character.
◆ StartChar
|
getset |
Gets or sets the optional start character.
◆ TextLocation
|
getset |
Gets or sets the location of the text next to the bar code.
◆ TurboBit
|
getset |
Gets or sets a value indicating whether the turbo bit is to be drawn. (A turbo bit is something special to Kern (computer output processing) company (as far as I know))
◆ WideNarrowRatio
|
getset |
When overridden in a derived class gets or sets the wide narrow ratio.
The documentation for this class was generated from the following file:
- PdfSharp.Drawing.BarCodes/BarCode.cs
