An Image is the representation of a graphic element (JPEG, PNG or GIF) that has to be inserted into the document More...

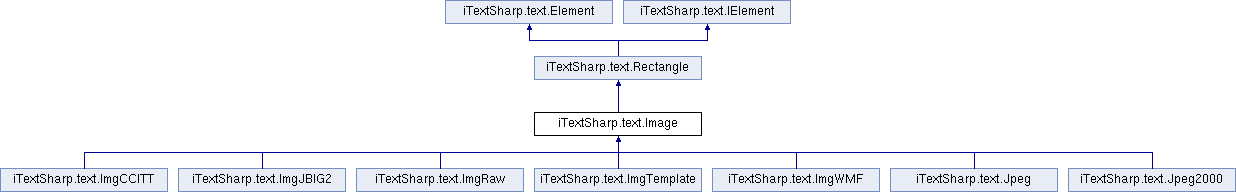

Inheritance diagram for iTextSharp.text.Image:

Public Member Functions
	Image (Uri url)
	Constructs an Image-object, using an url. More...

	Image (Image image)
	Constructs an Image object duplicate. More...

void	SetAbsolutePosition (float absoluteX, float absoluteY)
	Sets the absolute position of the Image. More...

void	ScaleAbsolute (float newWidth, float newHeight)
	Scale the image to an absolute width and an absolute height. More...

void	ScaleAbsoluteWidth (float newWidth)
	Scale the image to an absolute width. More...

void	ScaleAbsoluteHeight (float newHeight)
	Scale the image to an absolute height. More...

void	ScalePercent (float percent)
	Scale the image to a certain percentage. More...

void	ScalePercent (float percentX, float percentY)
	Scale the width and height of an image to a certain percentage. More...

void	ScaleToFit (float fitWidth, float fitHeight)
	Scales the image so that it fits a certain width and height. More...

float	GetImageRotation ()

bool	HasAbsolutePosition ()
	Checks if the Images has to be added at an absolute position. More...

bool	HasAbsoluteX ()
	Checks if the Images has to be added at an absolute X position. More...

override bool	IsNestable ()

bool	IsJpeg ()
	Returns true if the image is a Jpeg-object. More...

bool	IsImgRaw ()
	Returns true if the image is a ImgRaw-object. More...

bool	IsImgTemplate ()
	Returns true if the image is an ImgTemplate-object. More...

void	SetDpi (int dpiX, int dpiY)

bool	IsMaskCandidate ()
	Returns true if this Image has the requisites to be a mask. More...

void	MakeMask ()
	Make this Image a mask. More...

bool	IsMask ()
	Returns true if this Image is a mask. More...

bool	HasICCProfile ()

void	SimplifyColorspace ()

Public Member Functions inherited from iTextSharp.text.Rectangle
	Rectangle (float llx, float lly, float urx, float ury)
	Constructs a Rectangle-object. More...

	Rectangle (float urx, float ury)
	Constructs a Rectangle-object starting from the origin (0, 0). More...

	Rectangle (Rectangle rect)
	Constructs a Rectangle-object. More...

virtual void	CloneNonPositionParameters (Rectangle rect)

virtual void	SoftCloneNonPositionParameters (Rectangle rect)

virtual bool	Process (IElementListener listener)
	Processes the element by adding it (or the different parts) to an IElementListener. More...

bool	IsContent ()

virtual void	Normalize ()

Rectangle	GetRectangle (float top, float bottom)
	Gets a Rectangle that is altered to fit on the page. More...

Rectangle	Rotate ()
	Swaps the values of urx and ury and of lly and llx in order to rotate the rectangle. More...

virtual void	EnableBorderSide (int side)

virtual void	DisableBorderSide (int side)

virtual float	GetLeft (float margin)
	Returns the lower left x-coordinate, considering a given margin. More...

virtual float	GetRight (float margin)
	Returns the upper right x-coordinate, considering a given margin. More...

virtual float	GetTop (float margin)
	Returns the upper right y-coordinate, considering a given margin. More...

virtual float	GetBottom (float margin)
	Returns the lower left y-coordinate, considering a given margin. More...

bool	HasBorders ()
	Indicates if the table has borders. More...

bool	HasBorder (int type)
	Indicates if the table has a some type of border. More...

override String	ToString ()
	Gets the content of the text element. More...

Static Public Member Functions
static Image	GetInstance (Image image)
	Gets an instance of an Image. More...

static Image	GetInstance (Uri url)
	Gets an instance of an Image. More...

static Image	GetInstance (Stream s)

static Image	GetInstance (int width, int height, byte[] data, byte[] globals)

static Image	GetInstance (byte[] imgb)
	Gets an instance of an Image. More...

static Image	GetInstance (System.Drawing.Image image, System.Drawing.Imaging.ImageFormat format)
	Converts a .NET image to a Native(PNG, JPG, GIF, WMF) image More...

static Image	GetInstance (System.Drawing.Image image, Color color, bool forceBW)
	Gets an instance of an Image from a System.Drwaing.Image. More...

static Image	GetInstance (System.Drawing.Image image, Color color)
	Gets an instance of an Image from a System.Drawing.Image. More...

static Image	GetInstance (string filename)
	Gets an instance of an Image. More...

static Image	GetInstance (int width, int height, int components, int bpc, byte[] data)
	Gets an instance of an Image in raw mode. More...

static Image	GetInstance (PRIndirectReference iref)

static Image	GetInstance (PdfTemplate template)
	Gets an instance of an Image in raw mode. More...

static Image	GetInstance (int width, int height, bool reverseBits, int typeCCITT, int parameters, byte[] data)
	Gets an instance of an Image in raw mode. More...

static Image	GetInstance (int width, int height, bool reverseBits, int typeCCITT, int parameters, byte[] data, int[] transparency)

static Image	GetInstance (int width, int height, int components, int bpc, byte[] data, int[] transparency)
	Gets an instance of an Image in raw mode. More...

Static Public Attributes
const int	DEFAULT = 0
	this is a kind of image Element. More...

const int	RIGHT_ALIGN = 2
	this is a kind of image Element. More...

const int	LEFT_ALIGN = 0
	this is a kind of image Element. More...

const int	MIDDLE_ALIGN = 1
	this is a kind of image Element. More...

const int	TEXTWRAP = 4
	this is a kind of image Element. More...

const int	UNDERLYING = 8
	this is a kind of image Element. More...

const int	AX = 0
	This represents a coordinate in the transformation matrix. More...

const int	AY = 1
	This represents a coordinate in the transformation matrix. More...

const int	BX = 2
	This represents a coordinate in the transformation matrix. More...

const int	BY = 3
	This represents a coordinate in the transformation matrix. More...

const int	CX = 4
	This represents a coordinate in the transformation matrix. More...

const int	CY = 5
	This represents a coordinate in the transformation matrix. More...

const int	DX = 6
	This represents a coordinate in the transformation matrix. More...

const int	DY = 7
	This represents a coordinate in the transformation matrix. More...

const int	ORIGINAL_NONE = 0

const int	ORIGINAL_JPEG = 1

const int	ORIGINAL_PNG = 2

const int	ORIGINAL_GIF = 3

const int	ORIGINAL_BMP = 4

const int	ORIGINAL_TIFF = 5

const int	ORIGINAL_WMF = 6

const int	ORIGINAL_JPEG2000 = 8

const int	ORIGINAL_JBIG2 = 9

Static Public Attributes inherited from iTextSharp.text.Rectangle
const int	UNDEFINED = -1
	This is the value that will be used as undefined. More...

const int	TOP_BORDER = 1
	summary> This represents one side of the border of the Rectangle. More...

const int	BOTTOM_BORDER = 2
	summary> This represents one side of the border of the Rectangle. More...

const int	LEFT_BORDER = 4
	summary> This represents one side of the border of the Rectangle. More...

const int	RIGHT_BORDER = 8
	summary> This represents a rectangle without borders. More...

const int	NO_BORDER = 0
	summary> This represents a type of border. More...

const int	BOX = TOP_BORDER + BOTTOM_BORDER + LEFT_BORDER + RIGHT_BORDER

Static Public Attributes inherited from iTextSharp.text.Element
const int	HEADER = 0
	This is a possible type of Element. More...

const int	TITLE = 1
	This is a possible type of Element. More...

const int	SUBJECT = 2
	This is a possible type of Element. More...

const int	KEYWORDS = 3
	This is a possible type of Element. More...

const int	AUTHOR = 4
	This is a possible type of Element. More...

const int	PRODUCER = 5
	This is a possible type of Element. More...

const int	CREATIONDATE = 6
	This is a possible type of Element. More...

const int	CREATOR = 7
	This is a possible type of Element. More...

const int	CHUNK = 10
	This is a possible type of Element. More...

const int	PHRASE = 11
	This is a possible type of Element. More...

const int	PARAGRAPH = 12
	This is a possible type of Element. More...

const int	SECTION = 13
	This is a possible type of Element More...

const int	LIST = 14
	This is a possible type of Element More...

const int	LISTITEM = 15
	This is a possible type of Element More...

const int	CHAPTER = 16
	This is a possible type of Element More...

const int	ANCHOR = 17
	This is a possible type of Element More...

const int	CELL = 20
	This is a possible type of Element. More...

const int	ROW = 21
	This is a possible type of Element. More...

const int	TABLE = 22
	This is a possible type of Element. More...

const int	PTABLE = 23
	This is a possible type of Element. More...

const int	ANNOTATION = 29
	This is a possible type of Element. More...

const int	RECTANGLE = 30
	This is a possible type of Element. More...

const int	JPEG = 32
	This is a possible type of Element. More...

const int	JPEG2000 = 33

const int	IMGRAW = 34
	This is a possible type of Element. More...

const int	IMGTEMPLATE = 35
	This is a possible type of Element. More...

const int	JBIG2 = 36

const int	MULTI_COLUMN_TEXT = 40
	This is a possible type of More...

const int	MARKED = 50

const int	YMARK = 55

const int	ALIGN_UNDEFINED = -1
	A possible value for paragraph Element. This specifies that the text is aligned to the left indent and extra whitespace should be placed on the right. More...

const int	ALIGN_LEFT = 0
	A possible value for paragraph Element. This specifies that the text is aligned to the left indent and extra whitespace should be placed on the right. More...

const int	ALIGN_CENTER = 1
	A possible value for paragraph Element. This specifies that the text is aligned to the center and extra whitespace should be placed equally on the left and right. More...

const int	ALIGN_RIGHT = 2
	A possible value for paragraph Element. This specifies that the text is aligned to the right indent and extra whitespace should be placed on the left. More...

const int	ALIGN_JUSTIFIED = 3
	A possible value for paragraph Element. This specifies that extra whitespace should be spread out through the rows of the paragraph with the text lined up with the left and right indent except on the last line which should be aligned to the left. More...

const int	ALIGN_TOP = 4
	A possible value for vertical Element. More...

const int	ALIGN_MIDDLE = 5
	A possible value for vertical Element. More...

const int	ALIGN_BOTTOM = 6
	A possible value for vertical Element. More...

const int	ALIGN_BASELINE = 7
	A possible value for vertical Element. More...

const int	ALIGN_JUSTIFIED_ALL = 8
	Does the same as ALIGN_JUSTIFIED but the last line is also spread out. More...

const int	CCITTG4 = 0x100
	Pure two-dimensional encoding (Group 4) More...

const int	CCITTG3_1D = 0x101
	Pure one-dimensional encoding (Group 3, 1-D) More...

const int	CCITTG3_2D = 0x102
	Mixed one- and two-dimensional encoding (Group 3, 2-D) More...

const int	CCITT_BLACKIS1 = 1
	A flag indicating whether 1-bits are to be interpreted as black pixels and 0-bits as white pixels, More...

const int	CCITT_ENCODEDBYTEALIGN = 2
	A flag indicating whether the filter expects extra 0-bits before each encoded line so that the line begins on a byte boundary. More...

const int	CCITT_ENDOFLINE = 4
	A flag indicating whether end-of-line bit patterns are required to be present in the encoding. More...

const int	CCITT_ENDOFBLOCK = 8
	A flag indicating whether the filter expects the encoded data to be terminated by an end-of-block pattern, overriding the Rows parameter. The use of this flag will set the key /EndOfBlock to false. More...

Static Protected Member Functions
static long	GetSerialId ()
	generates new serial id More...

Protected Attributes
bool	invert = false

int	type
	The imagetype. More...

Uri	url
	The URL of the image. More...

byte[]	rawData
	The raw data of the image. More...

PdfTemplate[]	template = new PdfTemplate[1]
	The template to be treated as an image. More...

int	alignment
	The alignment of the Image. More...

string	alt
	Text that can be shown instead of the image. More...

float	absoluteX = float.NaN
	This is the absolute X-position of the image. More...

float	absoluteY = float.NaN
	This is the absolute Y-position of the image. More...

float	plainWidth
	This is the width of the image without rotation. More...

float	plainHeight
	This is the width of the image without rotation. More...

float	scaledWidth
	This is the scaled width of the image taking rotation into account. More...

float	scaledHeight
	This is the original height of the image taking rotation into account. More...

int	compressionLevel = PdfStream.DEFAULT_COMPRESSION

float	rotationRadians
	This is the rotation of the image. More...

int	colorspace = -1
	this is the colorspace of a jpeg-image. More...

int	bpc = 1
	this is the bits per component of the raw image. It also flags a CCITT image. More...

int[]	transparency
	this is the transparency information of the raw image More...

float	indentationLeft = 0

float	indentationRight = 0

long	mySerialId = GetSerialId()

int	dpiX = 0
	Holds value of property dpiX. More...

int	dpiY = 0
	Holds value of property dpiY. More...

bool	mask = false

Image	imageMask

bool	interpolation
	Holds value of property interpolation. More...

Annotation	annotation = null
	if the annotation is not null the image will be clickable. More...

ICC_Profile	profile = null
	ICC Profile attached More...

bool	deflated = false

int	originalType = ORIGINAL_NONE

byte[]	originalData

float	spacingBefore

float	spacingAfter

IPdfOCG	layer

Protected Attributes inherited from iTextSharp.text.Rectangle
float	llx
	the lower left x-coordinate. More...

float	lly
	summary> the upper right x-coordinate. More...

float	urx
	summary> the upper right y-coordinate. More...

float	ury
	summary> This represents the status of the 4 sides of the rectangle. More...

int	border = UNDEFINED
	summary> This is the width of the border around this rectangle. More...

float	borderWidth = UNDEFINED
	summary> This is the color of the border of this rectangle. More...

Color	borderColor = null

Color	borderColorLeft = null

Color	borderColorRight = null

Color	borderColorTop = null

Color	borderColorBottom = null

float	borderWidthLeft = UNDEFINED

float	borderWidthRight = UNDEFINED

float	borderWidthTop = UNDEFINED

float	borderWidthBottom = UNDEFINED

bool	useVariableBorders = false
	summary> This is the color of the background of this rectangle. More...

Color	backgroundColor = null
	summary> This is the rotation value of this rectangle. More...

int	rotation = 0

Properties
new float	Rotation `[set]`
	Sets the rotation of the image in radians. More...

float	RotationDegrees `[set]`
	Sets the rotation of the image in degrees. More...

Annotation	Annotation `[get, set]`
	Get/set the annotation. More...

int	Bpc `[get]`
	Gets the bpc for the image. More...

byte[]	RawData `[get]`
	Gets the raw data for the image. More...

PdfTemplate	TemplateData `[get, set]`
	Get/set the template to be used as an image. More...

float	AbsoluteX `[get]`
	Returns the absolute X position. More...

float	AbsoluteY `[get]`
	Returns the absolute Y position. More...

override int	Type `[get]`
	Returns the type. More...

Uri	Url `[get, set]`
	Gets the string-representation of the reference to the image. More...

int	Alignment `[get, set]`
	Get/set the alignment for the image. More...

string	Alt `[get, set]`
	Get/set the alternative text for the image. More...

float	ScaledWidth `[get]`
	Gets the scaled width of the image. More...

float	ScaledHeight `[get]`
	Gets the scaled height of the image. More...

int	Colorspace `[get]`
	Gets the colorspace for the image. More...

float[]	Matrix `[get]`
	Returns the transformation matrix of the image. More...

int[]	Transparency `[get, set]`
	Returns the transparency. More...

float	PlainWidth `[get]`
	Gets the plain width of the image. More...

float	PlainHeight `[get]`
	Gets the plain height of the image. More...

long	MySerialId `[get]`
	returns serial id for this object More...

int	DpiX `[get]`
	Gets the dots-per-inch in the X direction. Returns 0 if not available. More...

int	DpiY `[get]`
	Gets the dots-per-inch in the Y direction. Returns 0 if not available. More...

Image?	ImageMask `[get, set]`
	Get/set the explicit masking. More...

bool	Inverted `[get, set]`
	Inverts the meaning of the bits of a mask. More...

bool	Interpolation `[get, set]`
	Sets the image interpolation. Image interpolation attempts to produce a smooth transition between adjacent sample values. More...

ICC_Profile	TagICC `[get, set]`

bool	Deflated `[get, set]`

PdfDictionary	Additional `[get, set]`

bool	Smask `[get, set]`

float	XYRatio `[get, set]`

float	IndentationLeft `[get, set]`

float	IndentationRight `[get, set]`

int	OriginalType `[get, set]`

byte[]	OriginalData `[get, set]`

float	SpacingBefore `[get, set]`

float	SpacingAfter `[get, set]`

float	WidthPercentage `[get, set]`

IPdfOCG	Layer `[get, set]`

float	InitialRotation `[get, set]`

PdfIndirectReference	DirectReference `[get, set]`

int	CompressionLevel `[get, set]`

Properties inherited from iTextSharp.text.Rectangle
virtual int	Type `[get]`
	Gets the type of the text element. More...

virtual ArrayList	Chunks `[get]`
	Gets all the chunks in this element. More...

virtual float	Top `[get, set]`
	Get/set the upper right y-coordinate. More...

virtual int	Border `[get, set]`
	Get/set the border More...

virtual float	GrayFill `[get, set]`
	Get/set the grayscale of the rectangle. More...

virtual float	Left `[get, set]`
	Get/set the lower left x-coordinate. More...

virtual float	Right `[get, set]`
	Get/set the upper right x-coordinate. More...

virtual float	Bottom `[get, set]`
	Get/set the lower left y-coordinate. More...

virtual Color	BorderColorBottom `[get, set]`

virtual Color	BorderColorTop `[get, set]`

virtual Color	BorderColorLeft `[get, set]`

virtual Color	BorderColorRight `[get, set]`

virtual float	Width `[get, set]`
	Returns the width of the rectangle. More...

float	Height `[get]`
	Returns the height of the rectangle. More...

virtual float	BorderWidth `[get, set]`
	Get/set the borderwidth. More...

virtual Color	BorderColor `[get, set]`
	Get/set the color of the border. More...

virtual Color	BackgroundColor `[get, set]`
	Get/set the backgroundcolor. More...

int	Rotation `[get]`
	Returns the rotation More...

virtual float	BorderWidthLeft `[get, set]`

virtual float	BorderWidthRight `[get, set]`

virtual float	BorderWidthTop `[get, set]`

virtual float	BorderWidthBottom `[get, set]`

virtual bool	UseVariableBorders `[get, set]`

Properties inherited from iTextSharp.text.IElement
int	Type `[get]`
	Gets the type of the text element. More...

ArrayList	Chunks `[get]`
	Gets all the chunks in this element. More...

Detailed Description

An Image is the representation of a graphic element (JPEG, PNG or GIF) that has to be inserted into the document

See also: T:iTextSharp.text.Element, T:iTextSharp.text.Rectangle

Constructor & Destructor Documentation

◆ Image() [1/2]

iTextSharp.text.Image.Image ( Uri url )

Constructs an Image-object, using an url.

Parameters

url	the URL where the image can be found.

◆ Image() [2/2]

iTextSharp.text.Image.Image ( Image image )

Constructs an Image object duplicate.

Parameters

image another Image object.

Member Function Documentation

◆ GetImageRotation()

float iTextSharp.text.Image.GetImageRotation ( )

Gets the current image rotation in radians.

Returns: the current image rotation in radians

◆ GetInstance() [1/15]

static Image iTextSharp.text.Image.GetInstance ( byte[] imgb )

static

Gets an instance of an Image.

Parameters

img	a byte array

Returns: an object of type Gif, Jpeg or Png

◆ GetInstance() [2/15]

static Image iTextSharp.text.Image.GetInstance ( Image image )

static

Gets an instance of an Image.

Parameters

image an Image

Returns: an object of type Gif, Jpeg or Png

◆ GetInstance() [3/15]

static Image iTextSharp.text.Image.GetInstance	(	int	width,
		int	height,
		bool	reverseBits,
		int	typeCCITT,
		int	parameters,
		byte[]	data
	)

static

Gets an instance of an Image in raw mode.

Parameters

width	the width of the image in pixels
height	the height of the image in pixels
reverseBits
typeCCITT
parameters
data

Returns

◆ GetInstance() [4/15]

static Image iTextSharp.text.Image.GetInstance	(	int	width,
		int	height,
		bool	reverseBits,
		int	typeCCITT,
		int	parameters,
		byte[]	data,
		int[]	transparency
	)

static

Parameters

width
height
reverseBits
typeCCITT
parameters
data
transparency

Returns

◆ GetInstance() [5/15]

static Image iTextSharp.text.Image.GetInstance	(	int	width,
		int	height,
		byte[]	data,
		byte[]	globals
	)

static

Creates a JBIG2 Image.

Parameters

width	the width of the image
height	the height of the image
data	the raw image data
globals	JBIG2 globals

Since: 2.1.5

◆ GetInstance() [6/15]

static Image iTextSharp.text.Image.GetInstance	(	int	width,
		int	height,
		int	components,
		int	bpc,
		byte[]	data
	)

static

Gets an instance of an Image in raw mode.

Parameters

width	the width of the image in pixels
height	the height of the image in pixels
components	1,3 or 4 for GrayScale, RGB and CMYK
bpc	bits per component
data	the image data

Returns: an object of type ImgRaw

◆ GetInstance() [7/15]

static Image iTextSharp.text.Image.GetInstance	(	int	width,
		int	height,
		int	components,
		int	bpc,
		byte[]	data,
		int[]	transparency
	)

static

Gets an instance of an Image in raw mode.

Parameters

width	the width of the image in pixels
height	the height of the image in pixels
components	1,3 or 4 for GrayScale, RGB and CMYK
bpc	bits per component
data	the image data
transparency	transparency information in the Mask format of the image dictionary

Returns: an object of type ImgRaw

◆ GetInstance() [8/15]

static Image iTextSharp.text.Image.GetInstance ( PdfTemplate template )

static

Gets an instance of an Image in raw mode.

Parameters

template

Returns

◆ GetInstance() [9/15]

static Image iTextSharp.text.Image.GetInstance ( PRIndirectReference iref )

static

Reuses an existing image.

Parameters

ref	the reference to the image dictionary

Exceptions

BadElementException on error

Returns: the image

◆ GetInstance() [10/15]

static Image iTextSharp.text.Image.GetInstance ( Stream s )

static

◆ GetInstance() [11/15]

static Image iTextSharp.text.Image.GetInstance ( string filename )

static

Gets an instance of an Image.

Parameters

filename a filename

Returns: an object of type Gif, Jpeg or Png

◆ GetInstance() [12/15]

static Image iTextSharp.text.Image.GetInstance	(	System.Drawing.Image	image,
		Color	color
	)

static

Gets an instance of an Image from a System.Drawing.Image.

Parameters

image	the System.Drawing.Image to convert
color	if different from null the transparency pixels are replaced by this color

Returns: an object of type ImgRaw

◆ GetInstance() [13/15]

static Image iTextSharp.text.Image.GetInstance	(	System.Drawing.Image	image,
		Color	color,
		bool	forceBW
	)

static

Gets an instance of an Image from a System.Drwaing.Image.

Parameters

image	the System.Drawing.Image to convert
color	if different from null the transparency pixels are replaced by this color
forceBW	if true the image is treated as black and white

Returns: an object of type ImgRaw

◆ GetInstance() [14/15]

static Image iTextSharp.text.Image.GetInstance	(	System.Drawing.Image	image,
		System.Drawing.Imaging.ImageFormat	format
	)

static

Converts a .NET image to a Native(PNG, JPG, GIF, WMF) image

Parameters

?

Returns

◆ GetInstance() [15/15]

static Image iTextSharp.text.Image.GetInstance ( Uri url )

static

Gets an instance of an Image.

Parameters

url an URL

Returns: an object of type Gif, Jpeg or Png

◆ GetSerialId()

static long iTextSharp.text.Image.GetSerialId ( )

staticprotected

generates new serial id

◆ HasAbsolutePosition()

bool iTextSharp.text.Image.HasAbsolutePosition ( )

Checks if the Images has to be added at an absolute position.

Returns: a bool

◆ HasAbsoluteX()

bool iTextSharp.text.Image.HasAbsoluteX ( )

Checks if the Images has to be added at an absolute X position.

Returns: a bool

◆ HasICCProfile()

bool iTextSharp.text.Image.HasICCProfile ( )

Checks is the image has an ICC profile.

Returns: the ICC profile or null

◆ IsImgRaw()

bool iTextSharp.text.Image.IsImgRaw ( )

Returns true if the image is a ImgRaw-object.

Returns: a bool

◆ IsImgTemplate()

bool iTextSharp.text.Image.IsImgTemplate ( )

Returns true if the image is an ImgTemplate-object.

Returns: a bool

◆ IsJpeg()

bool iTextSharp.text.Image.IsJpeg ( )

Returns true if the image is a Jpeg-object.

Returns: a bool

◆ IsMask()

bool iTextSharp.text.Image.IsMask ( )

Returns true if this Image is a mask.

Returns: true if this Image is a mask

◆ IsMaskCandidate()

bool iTextSharp.text.Image.IsMaskCandidate ( )

Returns true if this Image has the requisites to be a mask.

Returns: true if this Image can be a mask

◆ IsNestable()

override bool iTextSharp.text.Image.IsNestable ( )

virtual

See also: com.lowagie.text.Element::isNestable()

Since: iText 2.0.8

Reimplemented from iTextSharp.text.Rectangle.

◆ MakeMask()

void iTextSharp.text.Image.MakeMask ( )

Make this Image a mask.

◆ ScaleAbsolute()

void iTextSharp.text.Image.ScaleAbsolute	(	float	newWidth,
		float	newHeight
	)

Scale the image to an absolute width and an absolute height.

Parameters

newWidth	the new width
newHeight	the new height

◆ ScaleAbsoluteHeight()

void iTextSharp.text.Image.ScaleAbsoluteHeight ( float newHeight )

Scale the image to an absolute height.

Parameters

newHeight the new height

◆ ScaleAbsoluteWidth()

void iTextSharp.text.Image.ScaleAbsoluteWidth ( float newWidth )

Scale the image to an absolute width.

Parameters

newWidth the new width

◆ ScalePercent() [1/2]

void iTextSharp.text.Image.ScalePercent ( float percent )

Scale the image to a certain percentage.

Parameters

percent the scaling percentage

◆ ScalePercent() [2/2]

void iTextSharp.text.Image.ScalePercent	(	float	percentX,
		float	percentY
	)

Scale the width and height of an image to a certain percentage.

Parameters

percentX	the scaling percentage of the width
percentY	the scaling percentage of the height

◆ ScaleToFit()

void iTextSharp.text.Image.ScaleToFit	(	float	fitWidth,
		float	fitHeight
	)

Scales the image so that it fits a certain width and height.

Parameters

fitWidth	the width to fit
fitHeight	the height to fit

◆ SetAbsolutePosition()

void iTextSharp.text.Image.SetAbsolutePosition	(	float	absoluteX,
		float	absoluteY
	)

Sets the absolute position of the Image.

Parameters

absoluteX
absoluteY

◆ SetDpi()

void iTextSharp.text.Image.SetDpi	(	int	dpiX,
		int	dpiY
	)

Sets the dots per inch value

Parameters

dpiX	dpi for x coordinates
dpiY	dpi for y coordinates

◆ SimplifyColorspace()

void iTextSharp.text.Image.SimplifyColorspace ( )

Replaces CalRGB and CalGray colorspaces with DeviceRGB and DeviceGray.

Member Data Documentation

◆ absoluteX

float iTextSharp.text.Image.absoluteX = float.NaN

protected

This is the absolute X-position of the image.

◆ absoluteY

float iTextSharp.text.Image.absoluteY = float.NaN

protected

This is the absolute Y-position of the image.

◆ alignment

int iTextSharp.text.Image.alignment

protected

The alignment of the Image.

◆ alt

string iTextSharp.text.Image.alt

protected

Text that can be shown instead of the image.

◆ annotation

Annotation iTextSharp.text.Image.annotation = null

protected

if the annotation is not null the image will be clickable.

◆ AX

const int iTextSharp.text.Image.AX = 0

static

This represents a coordinate in the transformation matrix.

◆ AY

const int iTextSharp.text.Image.AY = 1

static

This represents a coordinate in the transformation matrix.

◆ bpc

int iTextSharp.text.Image.bpc = 1

protected

this is the bits per component of the raw image. It also flags a CCITT image.

◆ BX

const int iTextSharp.text.Image.BX = 2

static

This represents a coordinate in the transformation matrix.

◆ BY

const int iTextSharp.text.Image.BY = 3

static

This represents a coordinate in the transformation matrix.

◆ colorspace

int iTextSharp.text.Image.colorspace = -1

protected

this is the colorspace of a jpeg-image.

◆ compressionLevel

int iTextSharp.text.Image.compressionLevel = PdfStream.DEFAULT_COMPRESSION

protected

The compression level of the content streams.

Since: 2.1.3

◆ CX

const int iTextSharp.text.Image.CX = 4

static

This represents a coordinate in the transformation matrix.

◆ CY

const int iTextSharp.text.Image.CY = 5

static

This represents a coordinate in the transformation matrix.

◆ DEFAULT

const int iTextSharp.text.Image.DEFAULT = 0

static

this is a kind of image Element.

◆ deflated

bool iTextSharp.text.Image.deflated = false

protected

Holds value of property deflated.

◆ dpiX

int iTextSharp.text.Image.dpiX = 0

protected

Holds value of property dpiX.

◆ dpiY

int iTextSharp.text.Image.dpiY = 0

protected

Holds value of property dpiY.

◆ DX

const int iTextSharp.text.Image.DX = 6

static

This represents a coordinate in the transformation matrix.

◆ DY

const int iTextSharp.text.Image.DY = 7

static

This represents a coordinate in the transformation matrix.

◆ imageMask

Image iTextSharp.text.Image.imageMask

protected

◆ indentationLeft

float iTextSharp.text.Image.indentationLeft = 0

protected

the indentation to the left.

◆ indentationRight

float iTextSharp.text.Image.indentationRight = 0

protected

the indentation to the right.

◆ interpolation

bool iTextSharp.text.Image.interpolation

protected

Holds value of property interpolation.

◆ invert

bool iTextSharp.text.Image.invert = false

protected

Image color inversion

◆ layer

IPdfOCG iTextSharp.text.Image.layer

protected

◆ LEFT_ALIGN

const int iTextSharp.text.Image.LEFT_ALIGN = 0

static

this is a kind of image Element.

◆ mask

bool iTextSharp.text.Image.mask = false

protected

◆ MIDDLE_ALIGN

const int iTextSharp.text.Image.MIDDLE_ALIGN = 1

static

this is a kind of image Element.

◆ mySerialId

long iTextSharp.text.Image.mySerialId = GetSerialId()

protected

◆ ORIGINAL_BMP

const int iTextSharp.text.Image.ORIGINAL_BMP = 4

static

type of image

◆ ORIGINAL_GIF

const int iTextSharp.text.Image.ORIGINAL_GIF = 3

static

type of image

◆ ORIGINAL_JBIG2

const int iTextSharp.text.Image.ORIGINAL_JBIG2 = 9

static

type of image

Since: 2.1.5

◆ ORIGINAL_JPEG

const int iTextSharp.text.Image.ORIGINAL_JPEG = 1

static

type of image

◆ ORIGINAL_JPEG2000

const int iTextSharp.text.Image.ORIGINAL_JPEG2000 = 8

static

type of image

◆ ORIGINAL_NONE

const int iTextSharp.text.Image.ORIGINAL_NONE = 0

static

type of image

◆ ORIGINAL_PNG

const int iTextSharp.text.Image.ORIGINAL_PNG = 2

static

type of image

◆ ORIGINAL_TIFF

const int iTextSharp.text.Image.ORIGINAL_TIFF = 5

static

type of image

◆ ORIGINAL_WMF

const int iTextSharp.text.Image.ORIGINAL_WMF = 6

static

type of image

◆ originalData

byte [] iTextSharp.text.Image.originalData

protected

Holds value of property originalData.

◆ originalType

int iTextSharp.text.Image.originalType = ORIGINAL_NONE

protected

Holds value of property originalType.

◆ plainHeight

float iTextSharp.text.Image.plainHeight

protected

This is the width of the image without rotation.

◆ plainWidth

float iTextSharp.text.Image.plainWidth

protected

This is the width of the image without rotation.

◆ profile

ICC_Profile iTextSharp.text.Image.profile = null

protected

ICC Profile attached

◆ rawData

byte [] iTextSharp.text.Image.rawData

protected

The raw data of the image.

◆ RIGHT_ALIGN

const int iTextSharp.text.Image.RIGHT_ALIGN = 2

static

this is a kind of image Element.

◆ rotationRadians

float iTextSharp.text.Image.rotationRadians

protected

This is the rotation of the image.

◆ scaledHeight

float iTextSharp.text.Image.scaledHeight

protected

This is the original height of the image taking rotation into account.

◆ scaledWidth

float iTextSharp.text.Image.scaledWidth

protected

This is the scaled width of the image taking rotation into account.

◆ spacingAfter

float iTextSharp.text.Image.spacingAfter

protected

The spacing after the image.

◆ spacingBefore

float iTextSharp.text.Image.spacingBefore

protected

The spacing before the image.

◆ template

PdfTemplate [] iTextSharp.text.Image.template = new PdfTemplate[1]

protected

The template to be treated as an image.

◆ TEXTWRAP

const int iTextSharp.text.Image.TEXTWRAP = 4

static

this is a kind of image Element.

◆ transparency

int [] iTextSharp.text.Image.transparency

protected

this is the transparency information of the raw image

◆ type

int iTextSharp.text.Image.type

protected

The imagetype.

◆ UNDERLYING

const int iTextSharp.text.Image.UNDERLYING = 8

static

this is a kind of image Element.

◆ url

Uri iTextSharp.text.Image.url

protected

The URL of the image.

Property Documentation

◆ AbsoluteX

float iTextSharp.text.Image.AbsoluteX

get

Returns the absolute X position.

a position

◆ AbsoluteY

float iTextSharp.text.Image.AbsoluteY

get

Returns the absolute Y position.

a position

◆ Additional

PdfDictionary iTextSharp.text.Image.Additional

getset

◆ Alignment

int iTextSharp.text.Image.Alignment

getset

Get/set the alignment for the image.

a value

◆ Alt

string iTextSharp.text.Image.Alt

getset

Get/set the alternative text for the image.

a string

◆ Annotation

Annotation iTextSharp.text.Image.Annotation

getset

Get/set the annotation.

the Annotation

◆ Bpc

int iTextSharp.text.Image.Bpc

get

Gets the bpc for the image.

this only makes sense for Images of the type RawImage.

a bpc value

◆ Colorspace

int iTextSharp.text.Image.Colorspace

get

Gets the colorspace for the image.

this only makes sense for Images of the type Jpeg.

a colorspace value

◆ CompressionLevel

int iTextSharp.text.Image.CompressionLevel

getset

Sets the compression level to be used if the image is written as a compressed stream.

Parameters

compressionLevel a value between 0 (best speed) and 9 (best compression)

Since: 2.1.3

◆ Deflated

bool iTextSharp.text.Image.Deflated

getset

◆ DirectReference

PdfIndirectReference iTextSharp.text.Image.DirectReference

getset

◆ DpiX

int iTextSharp.text.Image.DpiX

get

Gets the dots-per-inch in the X direction. Returns 0 if not available.

the dots-per-inch in the X direction

◆ DpiY

int iTextSharp.text.Image.DpiY

get

Gets the dots-per-inch in the Y direction. Returns 0 if not available.

the dots-per-inch in the Y direction

◆ ImageMask

Image? iTextSharp.text.Image.ImageMask

getset

Get/set the explicit masking.

the explicit masking

◆ IndentationLeft

float iTextSharp.text.Image.IndentationLeft

getset

◆ IndentationRight

float iTextSharp.text.Image.IndentationRight

getset

◆ InitialRotation

float iTextSharp.text.Image.InitialRotation

getset

Some image formats, like TIFF may present the images rotated that have to be compensated.

◆ Interpolation

bool iTextSharp.text.Image.Interpolation

getset

Sets the image interpolation. Image interpolation attempts to produce a smooth transition between adjacent sample values.

New value of property interpolation.

◆ Inverted

bool iTextSharp.text.Image.Inverted

getset

Inverts the meaning of the bits of a mask.

true to invert the meaning of the bits of a mask

◆ Layer

IPdfOCG iTextSharp.text.Image.Layer

getset

◆ Matrix

float [] iTextSharp.text.Image.Matrix

get

Returns the transformation matrix of the image.

an array [AX, AY, BX, BY, CX, CY, DX, DY]

◆ MySerialId

long iTextSharp.text.Image.MySerialId

get

returns serial id for this object

◆ OriginalData

byte [] iTextSharp.text.Image.OriginalData

getset

◆ OriginalType

int iTextSharp.text.Image.OriginalType

getset

◆ PlainHeight

float iTextSharp.text.Image.PlainHeight

get

Gets the plain height of the image.

a value

◆ PlainWidth

float iTextSharp.text.Image.PlainWidth

get

Gets the plain width of the image.

a value

◆ RawData

byte [] iTextSharp.text.Image.RawData

get

Gets the raw data for the image.

this only makes sense for Images of the type RawImage.

the raw data

◆ Rotation

new float iTextSharp.text.Image.Rotation

set

Sets the rotation of the image in radians.

Parameters

r	rotation in radians

◆ RotationDegrees

float iTextSharp.text.Image.RotationDegrees

set

Sets the rotation of the image in degrees.

Parameters

deg	rotation in degrees

◆ ScaledHeight

float iTextSharp.text.Image.ScaledHeight

get

Gets the scaled height of the image.

a value

◆ ScaledWidth

float iTextSharp.text.Image.ScaledWidth

get

Gets the scaled width of the image.

a value

◆ Smask

bool iTextSharp.text.Image.Smask

getset

◆ SpacingAfter

float iTextSharp.text.Image.SpacingAfter

getset

◆ SpacingBefore

float iTextSharp.text.Image.SpacingBefore

getset

◆ TagICC

ICC_Profile iTextSharp.text.Image.TagICC

getset

Tags this image with an ICC profile.

Parameters

profile the profile

◆ TemplateData

PdfTemplate iTextSharp.text.Image.TemplateData

getset

Get/set the template to be used as an image.

this only makes sense for Images of the type ImgTemplate.

the template

◆ Transparency

int [] iTextSharp.text.Image.Transparency

getset

Returns the transparency.

the transparency

◆ Type

override int iTextSharp.text.Image.Type

get

Returns the type.

a type

◆ Url

Uri iTextSharp.text.Image.Url

getset

Gets the string-representation of the reference to the image.

a string

◆ WidthPercentage

float iTextSharp.text.Image.WidthPercentage

getset

◆ XYRatio

float iTextSharp.text.Image.XYRatio

getset

The documentation for this class was generated from the following file:

src/core/iTextSharp/text/Image.cs

Public Member Functions

Static Public Member Functions

Static Public Attributes

Static Protected Member Functions

Protected Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ Image() [1/2]

◆ Image() [2/2]

Member Function Documentation

◆ GetImageRotation()

◆ GetInstance() [1/15]

◆ GetInstance() [2/15]

◆ GetInstance() [3/15]

◆ GetInstance() [4/15]

◆ GetInstance() [5/15]

◆ GetInstance() [6/15]

◆ GetInstance() [7/15]

◆ GetInstance() [8/15]

◆ GetInstance() [9/15]

◆ GetInstance() [10/15]

◆ GetInstance() [11/15]

◆ GetInstance() [12/15]

◆ GetInstance() [13/15]

◆ GetInstance() [14/15]

◆ GetInstance() [15/15]

◆ GetSerialId()

◆ HasAbsolutePosition()

◆ HasAbsoluteX()

◆ HasICCProfile()

◆ IsImgRaw()

◆ IsImgTemplate()

◆ IsJpeg()

◆ IsMask()

◆ IsMaskCandidate()

◆ IsNestable()

◆ MakeMask()

◆ ScaleAbsolute()

◆ ScaleAbsoluteHeight()

◆ ScaleAbsoluteWidth()

◆ ScalePercent() [1/2]

◆ ScalePercent() [2/2]

◆ ScaleToFit()

◆ SetAbsolutePosition()

◆ SetDpi()

◆ SimplifyColorspace()

Member Data Documentation

◆ absoluteX

◆ absoluteY

◆ alignment

◆ alt

◆ annotation

◆ AX

◆ AY

◆ bpc

◆ BX

◆ BY

◆ colorspace

◆ compressionLevel

◆ CX

◆ CY

◆ DEFAULT

◆ deflated

◆ dpiX

◆ dpiY

◆ DX

◆ DY

◆ imageMask

◆ indentationLeft

◆ indentationRight

◆ interpolation

◆ invert

◆ layer

◆ LEFT_ALIGN

◆ mask

◆ MIDDLE_ALIGN

◆ mySerialId

◆ ORIGINAL_BMP

◆ ORIGINAL_GIF
