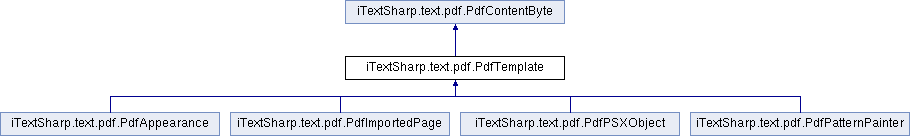

Inheritance diagram for iTextSharp.text.pdf.PdfTemplate:

Public Member Functions
void	SetMatrix (float a, float b, float c, float d, float e, float f)

void	BeginVariableText ()

void	EndVariableText ()

Public Member Functions inherited from iTextSharp.text.pdf.PdfContentByte
	PdfContentByte (PdfWriter wr)

override string	ToString ()

byte[]	ToPdf (PdfWriter writer)

void	Add (PdfContentByte other)

void	SetLeading (float v)

void	SetFlatness (float value)

void	SetLineCap (int value)

void	SetLineDash (float value)

void	SetLineDash (float unitsOn, float phase)

void	SetLineDash (float unitsOn, float unitsOff, float phase)

void	SetLineDash (float[] array, float phase)

void	SetLineJoin (int value)

void	SetLineWidth (float value)

void	SetMiterLimit (float value)

void	Clip ()

void	EoClip ()

virtual void	SetGrayFill (float value)

virtual void	ResetGrayFill ()

virtual void	SetGrayStroke (float value)

virtual void	ResetGrayStroke ()

virtual void	SetRGBColorFillF (float red, float green, float blue)

virtual void	ResetRGBColorFill ()

virtual void	SetRGBColorStrokeF (float red, float green, float blue)

virtual void	ResetRGBColorStroke ()

virtual void	SetCMYKColorFillF (float cyan, float magenta, float yellow, float black)

virtual void	ResetCMYKColorFill ()

virtual void	SetCMYKColorStrokeF (float cyan, float magenta, float yellow, float black)

virtual void	ResetCMYKColorStroke ()

void	MoveTo (float x, float y)

void	LineTo (float x, float y)

void	CurveTo (float x1, float y1, float x2, float y2, float x3, float y3)

void	CurveTo (float x2, float y2, float x3, float y3)

void	CurveFromTo (float x1, float y1, float x3, float y3)

void	Circle (float x, float y, float r)

void	Rectangle (float x, float y, float w, float h)

void	VariableRectangle (Rectangle rect)

void	Rectangle (Rectangle rectangle)

void	ClosePath ()

void	NewPath ()

void	Stroke ()

void	ClosePathStroke ()

void	Fill ()

void	EoFill ()

void	FillStroke ()

void	ClosePathFillStroke ()

void	EoFillStroke ()

void	ClosePathEoFillStroke ()

virtual void	AddImage (Image image)

virtual void	AddImage (Image image, bool inlineImage)

virtual void	AddImage (Image image, float a, float b, float c, float d, float e, float f)

virtual void	AddImage (Image image, float a, float b, float c, float d, float e, float f, bool inlineImage)

void	Reset ()

void	Reset (bool validateContent)

void	BeginText ()

void	EndText ()

void	SaveState ()

void	RestoreState ()

void	SetCharacterSpacing (float value)

void	SetWordSpacing (float value)

void	SetHorizontalScaling (float value)

virtual void	SetFontAndSize (BaseFont bf, float size)

void	SetTextRenderingMode (int value)

void	SetTextRise (float value)

void	ShowText (string text)

void	ShowTextKerned (String text)

void	NewlineShowText (string text)

void	NewlineShowText (float wordSpacing, float charSpacing, string text)

void	SetTextMatrix (float a, float b, float c, float d, float x, float y)

void	SetTextMatrix (float x, float y)

void	MoveText (float x, float y)

void	MoveTextWithLeading (float x, float y)

void	NewlineText ()

void	AddOutline (PdfOutline outline, string name)

float	GetEffectiveStringWidth (String text, bool kerned)

void	ShowTextAligned (int alignment, String text, float x, float y, float rotation)

void	ShowTextAlignedKerned (int alignment, String text, float x, float y, float rotation)

void	ConcatCTM (float a, float b, float c, float d, float e, float f)

void	Arc (float x1, float y1, float x2, float y2, float startAng, float extent)

void	Ellipse (float x1, float y1, float x2, float y2)

PdfPatternPainter	CreatePattern (float width, float height, float xstep, float ystep)

PdfPatternPainter	CreatePattern (float width, float height)

PdfPatternPainter	CreatePattern (float width, float height, float xstep, float ystep, Color color)

PdfPatternPainter	CreatePattern (float width, float height, Color color)

PdfTemplate	CreateTemplate (float width, float height)

PdfAppearance	CreateAppearance (float width, float height)

void	AddPSXObject (PdfPSXObject psobject)

virtual void	AddTemplate (PdfTemplate template, float a, float b, float c, float d, float e, float f)

void	AddTemplate (PdfTemplate template, float x, float y)

virtual void	SetCMYKColorFill (int cyan, int magenta, int yellow, int black)

virtual void	SetCMYKColorStroke (int cyan, int magenta, int yellow, int black)

virtual void	SetRGBColorFill (int red, int green, int blue)

virtual void	SetRGBColorStroke (int red, int green, int blue)

virtual void	SetColorStroke (Color value)

virtual void	SetColorFill (Color value)

virtual void	SetColorFill (PdfSpotColor sp, float tint)

virtual void	SetColorStroke (PdfSpotColor sp, float tint)

virtual void	SetPatternFill (PdfPatternPainter p)

virtual void	SetPatternFill (PdfPatternPainter p, Color color)

virtual void	SetPatternFill (PdfPatternPainter p, Color color, float tint)

virtual void	SetPatternStroke (PdfPatternPainter p, Color color)

virtual void	SetPatternStroke (PdfPatternPainter p, Color color, float tint)

virtual void	SetPatternStroke (PdfPatternPainter p)

virtual void	PaintShading (PdfShading shading)

virtual void	PaintShading (PdfShadingPattern shading)

virtual void	SetShadingFill (PdfShadingPattern shading)

virtual void	SetShadingStroke (PdfShadingPattern shading)

void	ShowText (PdfTextArray text)

void	LocalGoto (string name, float llx, float lly, float urx, float ury)

bool	LocalDestination (string name, PdfDestination destination)

void	RemoteGoto (string filename, string name, float llx, float lly, float urx, float ury)

void	RemoteGoto (string filename, int page, float llx, float lly, float urx, float ury)

void	RoundRectangle (float x, float y, float w, float h, float r)

virtual void	SetAction (PdfAction action, float llx, float lly, float urx, float ury)

void	SetLiteral (string s)

void	SetLiteral (char c)

void	SetLiteral (float n)

void	DrawRadioField (float llx, float lly, float urx, float ury, bool on)

void	DrawTextField (float llx, float lly, float urx, float ury)

void	DrawButton (float llx, float lly, float urx, float ury, string text, BaseFont bf, float size)

void	SetGState (PdfGState gstate)

void	BeginLayer (IPdfOCG layer)

void	EndLayer ()

virtual void	SetDefaultColorspace (PdfName name, PdfObject obj)

void	Transform (System.Drawing.Drawing2D.Matrix tx)

void	BeginMarkedContentSequence (PdfStructureElement struc)

void	EndMarkedContentSequence ()

void	BeginMarkedContentSequence (PdfName tag, PdfDictionary property, bool inline)

void	BeginMarkedContentSequence (PdfName tag)

void	SanityCheck ()

virtual void	AddFormXObj (PdfStream template, PdfName name, float a, float b, float c, float d, float e, float f)

Static Public Member Functions
static PdfTemplate	CreateTemplate (PdfWriter writer, float width, float height)

Static Public Member Functions inherited from iTextSharp.text.pdf.PdfContentByte
static PdfTextArray	GetKernArray (String text, BaseFont font)

static ArrayList	BezierArc (float x1, float y1, float x2, float y2, float startAng, float extent)

Static Public Attributes
const int	TYPE_TEMPLATE = 1

const int	TYPE_IMPORTED = 2

const int	TYPE_PATTERN = 3

Static Public Attributes inherited from iTextSharp.text.pdf.PdfContentByte
const int	ALIGN_CENTER = Element.ALIGN_CENTER

const int	ALIGN_LEFT = Element.ALIGN_LEFT

const int	ALIGN_RIGHT = Element.ALIGN_RIGHT

const int	LINE_CAP_BUTT = 0

const int	LINE_CAP_ROUND = 1

const int	LINE_CAP_PROJECTING_SQUARE = 2

const int	LINE_JOIN_MITER = 0

const int	LINE_JOIN_ROUND = 1

const int	LINE_JOIN_BEVEL = 2

const int	TEXT_RENDER_MODE_FILL = 0

const int	TEXT_RENDER_MODE_STROKE = 1

const int	TEXT_RENDER_MODE_FILL_STROKE = 2

const int	TEXT_RENDER_MODE_INVISIBLE = 3

const int	TEXT_RENDER_MODE_FILL_CLIP = 4

const int	TEXT_RENDER_MODE_STROKE_CLIP = 5

const int	TEXT_RENDER_MODE_FILL_STROKE_CLIP = 6

const int	TEXT_RENDER_MODE_CLIP = 7

Protected Member Functions
	PdfTemplate ()

Protected Member Functions inherited from iTextSharp.text.pdf.PdfContentByte
virtual void	CheckWriter ()

Protected Attributes
int	type

PdfIndirectReference	thisReference

PageResources	pageResources

Rectangle	bBox = new Rectangle(0, 0)

PdfArray	matrix

PdfTransparencyGroup	group

IPdfOCG	layer

Protected Attributes inherited from iTextSharp.text.pdf.PdfContentByte
ByteBuffer	content = new ByteBuffer()

PdfWriter	writer

PdfDocument	pdf

GraphicState	state = new GraphicState()

ArrayList	layerDepth

ArrayList	stateList = new ArrayList()

int	separator = '\n'

Properties
float	Width `[get, set]`

float	Height `[get, set]`

Rectangle	BoundingBox `[get, set]`

IPdfOCG	Layer `[get, set]`

PdfIndirectReference	IndirectReference `[get]`

override PdfContentByte	Duplicate `[get]`

int	Type `[get]`

virtual PdfTransparencyGroup	Group `[get, set]`

Properties inherited from iTextSharp.text.pdf.PdfContentByte
ByteBuffer	InternalBuffer `[get]`

float	XTLM `[get]`

float	YTLM `[get]`

float	CharacterSpacing `[get]`

float	WordSpacing `[get]`

float	HorizontalScaling `[get]`

float	Leading `[get]`

PdfOutline	RootOutline `[get]`

PdfWriter	PdfWriter `[get]`

PdfDocument	PdfDocument `[get]`

virtual PdfContentByte	Duplicate `[get]`

Detailed Description

Implements the form XObject.

Constructor & Destructor Documentation

◆ PdfTemplate()

iTextSharp.text.pdf.PdfTemplate.PdfTemplate ( )

protected

Creates a PdfTemplate.

Member Function Documentation

◆ BeginVariableText()

void iTextSharp.text.pdf.PdfTemplate.BeginVariableText ( )

◆ CreateTemplate()

static PdfTemplate iTextSharp.text.pdf.PdfTemplate.CreateTemplate	(	PdfWriter	writer,
		float	width,
		float	height
	)

static

Creates a new template.

Creates a new template that is nothing more than a form XObject. This template can be included in this PdfContentByte or in another template. Templates are only written to the output when the document is closed permitting things like showing text in the first page that is only defined in the last page.

Parameters

width	the bounding box width
height	the bounding box height

Returns: the templated created

◆ EndVariableText()

void iTextSharp.text.pdf.PdfTemplate.EndVariableText ( )

◆ SetMatrix()

void iTextSharp.text.pdf.PdfTemplate.SetMatrix	(	float	a,
		float	b,
		float	c,
		float	d,
		float	e,
		float	f
	)

Member Data Documentation

◆ bBox

Rectangle iTextSharp.text.pdf.PdfTemplate.bBox = new Rectangle(0, 0)

protected

The bounding box of this template

◆ group

PdfTransparencyGroup iTextSharp.text.pdf.PdfTemplate.group

protected

◆ layer

IPdfOCG iTextSharp.text.pdf.PdfTemplate.layer

protected

◆ matrix

PdfArray iTextSharp.text.pdf.PdfTemplate.matrix

protected

◆ pageResources

PageResources iTextSharp.text.pdf.PdfTemplate.pageResources

protected

The resources used by this template

◆ thisReference

PdfIndirectReference iTextSharp.text.pdf.PdfTemplate.thisReference

protected

The indirect reference to this template

◆ type

int iTextSharp.text.pdf.PdfTemplate.type

protected

◆ TYPE_IMPORTED

const int iTextSharp.text.pdf.PdfTemplate.TYPE_IMPORTED = 2

static

◆ TYPE_PATTERN

const int iTextSharp.text.pdf.PdfTemplate.TYPE_PATTERN = 3

static

◆ TYPE_TEMPLATE

const int iTextSharp.text.pdf.PdfTemplate.TYPE_TEMPLATE = 1

static

Property Documentation

◆ BoundingBox

Rectangle iTextSharp.text.pdf.PdfTemplate.BoundingBox

getset

◆ Duplicate

override PdfContentByte iTextSharp.text.pdf.PdfTemplate.Duplicate

get

Gets a duplicate of this PdfTemplate. All the members are copied by reference but the buffer stays different.

Returns: a copy of this PdfTemplate

◆ Group

virtual PdfTransparencyGroup iTextSharp.text.pdf.PdfTemplate.Group

getset

◆ Height

float iTextSharp.text.pdf.PdfTemplate.Height

getset

Gets the bounding heigth of this template.

Returns: heigth the bounding height

◆ IndirectReference

PdfIndirectReference iTextSharp.text.pdf.PdfTemplate.IndirectReference

get

Gets the indirect reference to this template.

Returns: the indirect reference to this template

◆ Layer

IPdfOCG iTextSharp.text.pdf.PdfTemplate.Layer

getset

Gets the layer this template belongs to.

Returns: the layer this template belongs to or null for no layer defined

◆ Type

int iTextSharp.text.pdf.PdfTemplate.Type

get

◆ Width

float iTextSharp.text.pdf.PdfTemplate.Width

getset

Gets the bounding width of this template.

Returns: width the bounding width

The documentation for this class was generated from the following file:

src/core/iTextSharp/text/pdf/PdfTemplate.cs

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ PdfTemplate()

Member Function Documentation

◆ BeginVariableText()

◆ CreateTemplate()

◆ EndVariableText()

◆ SetMatrix()

Member Data Documentation

◆ bBox

◆ group

◆ layer

◆ matrix

◆ pageResources

◆ thisReference

◆ type

◆ TYPE_IMPORTED

◆ TYPE_PATTERN

◆ TYPE_TEMPLATE

Property Documentation

◆ BoundingBox

◆ Duplicate

◆ Group

◆ Height

◆ IndirectReference

◆ Layer

◆ Type

◆ Width
