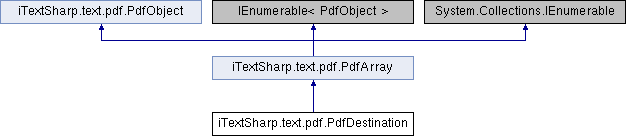

Inheritance diagram for iTextSharp.text.pdf.PdfDestination:

Public Member Functions
	PdfDestination (int type)

	PdfDestination (int type, float parameter)

	PdfDestination (int type, float left, float top, float zoom)

	PdfDestination (int type, float left, float bottom, float right, float top)

bool	HasPage ()

bool	AddPage (PdfIndirectReference page)

Public Member Functions inherited from iTextSharp.text.pdf.PdfArray
	PdfArray ()

	PdfArray (PdfObject obj)

	PdfArray (float[] values)

	PdfArray (int[] values)

	PdfArray (ArrayList l)

	PdfArray (PdfArray array)

override void	ToPdf (PdfWriter writer, Stream os)

PdfObject	Remove (int idx)

bool	IsEmpty ()

virtual bool	Add (PdfObject obj)

virtual bool	Add (float[] values)

virtual bool	Add (int[] values)

virtual void	Add (int index, PdfObject element)

virtual void	AddFirst (PdfObject obj)

bool	Contains (PdfObject obj)

ListIterator	GetListIterator ()

override string	ToString ()

PdfObject	GetDirectObject (int idx)

PdfDictionary	GetAsDict (int idx)

PdfArray	GetAsArray (int idx)

PdfStream	GetAsStream (int idx)

PdfString	GetAsString (int idx)

PdfNumber	GetAsNumber (int idx)

PdfName	GetAsName (int idx)

PdfBoolean	GetAsBoolean (int idx)

PdfIndirectReference	GetAsIndirectObject (int idx)

IEnumerator	GetEnumerator ()

Public Member Functions inherited from iTextSharp.text.pdf.PdfObject
virtual byte[]	GetBytes ()

bool	CanBeInObjStm ()

override string	ToString ()

bool	IsNull ()

bool	IsBoolean ()

bool	IsNumber ()

bool	IsString ()

bool	IsName ()

bool	IsArray ()

bool	IsDictionary ()

bool	IsStream ()

bool	IsIndirect ()

Static Public Attributes
const int	XYZ = 0

const int	FIT = 1

const int	FITH = 2

const int	FITV = 3

const int	FITR = 4

const int	FITB = 5

const int	FITBH = 6

const int	FITBV = 7

Static Public Attributes inherited from iTextSharp.text.pdf.PdfObject
const int	BOOLEAN = 1

const int	NUMBER = 2

const int	STRING = 3

const int	NAME = 4

const int	ARRAY = 5

const int	DICTIONARY = 6

const int	STREAM = 7

const int	NULL = 8

const int	INDIRECT = 10

const string	NOTHING = ""

const string	TEXT_PDFDOCENCODING = "PDF"

const string	TEXT_UNICODE = "UnicodeBig"

Additional Inherited Members
Protected Member Functions inherited from iTextSharp.text.pdf.PdfObject
	PdfObject (int type)

	PdfObject (int type, string content)

	PdfObject (int type, byte[] bytes)

Protected Attributes inherited from iTextSharp.text.pdf.PdfArray
ArrayList	arrayList

Protected Attributes inherited from iTextSharp.text.pdf.PdfObject
byte[]	bytes

int	type

PRIndirectReference	indRef

Properties inherited from iTextSharp.text.pdf.PdfArray
PdfObject	this[int idx] `[get, set]`

ArrayList	ArrayList `[get]`

int	Size `[get]`

Properties inherited from iTextSharp.text.pdf.PdfObject
int	Length `[get]`

string	Content `[set]`

int	Type `[get]`

PRIndirectReference	IndRef `[get, set]`

Detailed Description

A PdfColor defines a Color (it's a PdfArray containing 3 values).

See also: PdfDictionary

Constructor & Destructor Documentation

◆ PdfDestination() [1/4]

iTextSharp.text.pdf.PdfDestination.PdfDestination ( int type )

Constructs a new PdfDestination.

If type equals FITB, the bounding box of a page will fit the window of the Reader. Otherwise the type will be set to FIT so that the entire page will fit to the window.

Parameters

type	The destination type

◆ PdfDestination() [2/4]

iTextSharp.text.pdf.PdfDestination.PdfDestination	(	int	type,
		float	parameter
	)

Constructs a new PdfDestination.

If type equals FITBH / FITBV, the width / height of the bounding box of a page will fit the window of the Reader. The parameter will specify the y / x coordinate of the top / left edge of the window. If the type equals FITH or FITV the width / height of the entire page will fit the window and the parameter will specify the y / x coordinate of the top / left edge. In all other cases the type will be set to FITH.

Parameters

type	the destination type
parameter	a parameter to combined with the destination type

◆ PdfDestination() [3/4]

iTextSharp.text.pdf.PdfDestination.PdfDestination	(	int	type,
		float	left,
		float	top,
		float	zoom
	)

Constructs a new PdfDestination.

Display the page, with the coordinates (left, top) positioned at the top-left corner of the window and the contents of the page magnified by the factor zoom. A negative value for any of the parameters left or top, or a zoom value of 0 specifies that the current value of that parameter is to be retained unchanged.

Parameters

type	must be a PdfDestination.XYZ
left	the left value. Negative to place a null
top	the top value. Negative to place a null
zoom	The zoom factor. A value of 0 keeps the current value

◆ PdfDestination() [4/4]

iTextSharp.text.pdf.PdfDestination.PdfDestination	(	int	type,
		float	left,
		float	bottom,
		float	right,
		float	top
	)

Constructs a new PdfDestination.

Display the page, with its contents magnified just enough to fit the rectangle specified by the coordinates left, bottom, right, and top entirely within the window both horizontally and vertically. If the required horizontal and vertical magnification factors are different, use the smaller of the two, centering the rectangle within the window in the other dimension.

Parameters

type	must be PdfDestination.FITR
left	a parameter
bottom	a parameter
right	a parameter
top	a parameter

Since: iText0.38

Member Function Documentation

◆ AddPage()

bool iTextSharp.text.pdf.PdfDestination.AddPage ( PdfIndirectReference page )

Adds the indirect reference of the destination page.

Parameters

page	an indirect reference

Returns: true if the page reference was added

◆ HasPage()

bool iTextSharp.text.pdf.PdfDestination.HasPage ( )

Checks if an indirect reference to a page has been added.

Returns: true or false
