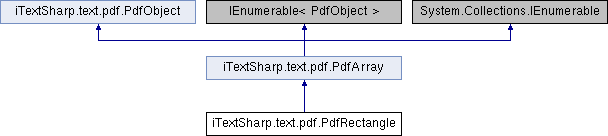

Inheritance diagram for iTextSharp.text.pdf.PdfRectangle:

Public Member Functions
	PdfRectangle (float llx, float lly, float urx, float ury, int rotation)

	PdfRectangle (float llx, float lly, float urx, float ury)

	PdfRectangle (float urx, float ury, int rotation)

	PdfRectangle (float urx, float ury)

	PdfRectangle (Rectangle rectangle, int rotation)

	PdfRectangle (Rectangle rectangle)

override bool	Add (PdfObject obj)

override bool	Add (float[] values)

override bool	Add (int[] values)

override void	AddFirst (PdfObject obj)

float	GetLeft (int margin)

float	GetRight (int margin)

float	GetTop (int margin)

float	GetBottom (int margin)

Public Member Functions inherited from iTextSharp.text.pdf.PdfArray
	PdfArray ()

	PdfArray (PdfObject obj)

	PdfArray (float[] values)

	PdfArray (int[] values)

	PdfArray (ArrayList l)

	PdfArray (PdfArray array)

override void	ToPdf (PdfWriter writer, Stream os)

PdfObject	Remove (int idx)

bool	IsEmpty ()

virtual void	Add (int index, PdfObject element)

bool	Contains (PdfObject obj)

ListIterator	GetListIterator ()

override string	ToString ()

PdfObject	GetDirectObject (int idx)

PdfDictionary	GetAsDict (int idx)

PdfArray	GetAsArray (int idx)

PdfStream	GetAsStream (int idx)

PdfString	GetAsString (int idx)

PdfNumber	GetAsNumber (int idx)

PdfName	GetAsName (int idx)

PdfBoolean	GetAsBoolean (int idx)

PdfIndirectReference	GetAsIndirectObject (int idx)

IEnumerator	GetEnumerator ()

Public Member Functions inherited from iTextSharp.text.pdf.PdfObject
virtual byte[]	GetBytes ()

bool	CanBeInObjStm ()

override string	ToString ()

bool	IsNull ()

bool	IsBoolean ()

bool	IsNumber ()

bool	IsString ()

bool	IsName ()

bool	IsArray ()

bool	IsDictionary ()

bool	IsStream ()

bool	IsIndirect ()

Properties
Rectangle	Rectangle `[get]`

float	Left `[get]`

float	Right `[get]`

float	Top `[get]`

float	Bottom `[get]`

float	Width `[get]`

float	Height `[get]`

PdfRectangle	Rotate `[get]`

Properties inherited from iTextSharp.text.pdf.PdfArray
PdfObject	this[int idx] `[get, set]`

ArrayList	ArrayList `[get]`

int	Size `[get]`

Properties inherited from iTextSharp.text.pdf.PdfObject
int	Length `[get]`

string	Content `[set]`

int	Type `[get]`

PRIndirectReference	IndRef `[get, set]`

Additional Inherited Members
Static Public Attributes inherited from iTextSharp.text.pdf.PdfObject
const int	BOOLEAN = 1

const int	NUMBER = 2

const int	STRING = 3

const int	NAME = 4

const int	ARRAY = 5

const int	DICTIONARY = 6

const int	STREAM = 7

const int	NULL = 8

const int	INDIRECT = 10

const string	NOTHING = ""

const string	TEXT_PDFDOCENCODING = "PDF"

const string	TEXT_UNICODE = "UnicodeBig"

Protected Member Functions inherited from iTextSharp.text.pdf.PdfObject
	PdfObject (int type)

	PdfObject (int type, string content)

	PdfObject (int type, byte[] bytes)

Protected Attributes inherited from iTextSharp.text.pdf.PdfArray
ArrayList	arrayList

Protected Attributes inherited from iTextSharp.text.pdf.PdfObject
byte[]	bytes

int	type

PRIndirectReference	indRef

Detailed Description

PdfRectangle is the PDF Rectangle object.

Rectangles are used to describe locations on the page and bounding boxes for several objects in PDF, such as fonts. A rectangle is represented as an array of four numbers, specifying the lower lef x, lower left y, upper right x, and upper right y coordinates of the rectangle, in that order.
This object is described in the 'Portable Document Format Reference Manual version 1.3' section 7.1 (page 183).

See also: iTextSharp.text.Rectangle; PdfArray

Constructor & Destructor Documentation

◆ PdfRectangle() [1/6]

iTextSharp.text.pdf.PdfRectangle.PdfRectangle	(	float	llx,
		float	lly,
		float	urx,
		float	ury,
		int	rotation
	)

Constructs a PdfRectangle-object.

Parameters

llx	lower left x
lly	lower left y
urx	upper right x
ury	upper right y

Since: rugPdf0.10

◆ PdfRectangle() [2/6]

iTextSharp.text.pdf.PdfRectangle.PdfRectangle	(	float	llx,
		float	lly,
		float	urx,
		float	ury
	)

◆ PdfRectangle() [3/6]

iTextSharp.text.pdf.PdfRectangle.PdfRectangle	(	float	urx,
		float	ury,
		int	rotation
	)

Constructs a PdfRectangle-object starting from the origin (0, 0).

Parameters

urx	upper right x
ury	upper right y

◆ PdfRectangle() [4/6]

iTextSharp.text.pdf.PdfRectangle.PdfRectangle	(	float	urx,
		float	ury
	)

◆ PdfRectangle() [5/6]

iTextSharp.text.pdf.PdfRectangle.PdfRectangle	(	Rectangle	rectangle,
		int	rotation
	)

Constructs a PdfRectangle-object with a Rectangle-object.

Parameters

rectangle a Rectangle

◆ PdfRectangle() [6/6]

iTextSharp.text.pdf.PdfRectangle.PdfRectangle ( Rectangle rectangle )

Member Function Documentation

◆ Add() [1/3]

override bool iTextSharp.text.pdf.PdfRectangle.Add ( float[] values )

virtual

Block changes to the underlying PdfArray

Parameters

values stuff we'll ignore. Ha!

Returns: false. You can't add anything to a PdfRectangle

Since: 2.1.5

Reimplemented from iTextSharp.text.pdf.PdfArray.

◆ Add() [2/3]

override bool iTextSharp.text.pdf.PdfRectangle.Add ( int[] values )

virtual

Block changes to the underlying PdfArray

Parameters

values stuff we'll ignore. Ha!

Returns: false. You can't add anything to a PdfRectangle

Since: 2.1.5

Reimplemented from iTextSharp.text.pdf.PdfArray.

◆ Add() [3/3]

override bool iTextSharp.text.pdf.PdfRectangle.Add ( PdfObject obj )

virtual

Overrides the add-method in PdfArray in order to prevent the adding of extra object to the array.

Parameters

object PdfObject to add (will not be added here)

Returns: false

Reimplemented from iTextSharp.text.pdf.PdfArray.

◆ AddFirst()

override void iTextSharp.text.pdf.PdfRectangle.AddFirst ( PdfObject obj )

virtual

Block changes to the underlying PdfArray

Parameters

object Ignored.

Since: 2.1.5

Reimplemented from iTextSharp.text.pdf.PdfArray.

◆ GetBottom()

float iTextSharp.text.pdf.PdfRectangle.GetBottom ( int margin )

Returns the lower left y-coordinate, considering a given margin.

Parameters

margin a margin

Returns: the lower left y-coordinate

◆ GetLeft()

float iTextSharp.text.pdf.PdfRectangle.GetLeft ( int margin )

Returns the lower left x-coordinate, considering a given margin.

Parameters

margin a margin

Returns: the lower left x-coordinate

◆ GetRight()

float iTextSharp.text.pdf.PdfRectangle.GetRight ( int margin )

Returns the upper right x-coordinate, considering a given margin.

Parameters

margin a margin

Returns: the upper right x-coordinate

◆ GetTop()

float iTextSharp.text.pdf.PdfRectangle.GetTop ( int margin )

Returns the upper right y-coordinate, considering a given margin.

Parameters

margin a margin

Returns: the upper right y-coordinate

Property Documentation

◆ Bottom

float iTextSharp.text.pdf.PdfRectangle.Bottom

get

Returns the lower left y-coordinate.

Returns: the lower left y-coordinate

◆ Height

float iTextSharp.text.pdf.PdfRectangle.Height

get

Returns the height of the rectangle.

Returns: a height

◆ Left

float iTextSharp.text.pdf.PdfRectangle.Left

get

Returns the lower left x-coordinate.

Returns: the lower left x-coordinaat

◆ Rectangle

Rectangle iTextSharp.text.pdf.PdfRectangle.Rectangle

get

Returns the high level version of this PdfRectangle

Returns: this PdfRectangle translated to class Rectangle

◆ Right

float iTextSharp.text.pdf.PdfRectangle.Right

get

Returns the upper right x-coordinate.

Returns: the upper right x-coordinate

◆ Rotate

PdfRectangle iTextSharp.text.pdf.PdfRectangle.Rotate

get

Swaps the values of urx and ury and of lly and llx in order to rotate the rectangle.

Returns: a PdfRectangle

◆ Top

float iTextSharp.text.pdf.PdfRectangle.Top

get

Returns the upper right y-coordinate.

Returns: the upper right y-coordinate

◆ Width

float iTextSharp.text.pdf.PdfRectangle.Width

get

Returns the width of the rectangle.

Returns: a width

The documentation for this class was generated from the following file:

src/core/iTextSharp/text/pdf/PdfRectangle.cs
