Summary description for SimpleTable. More...

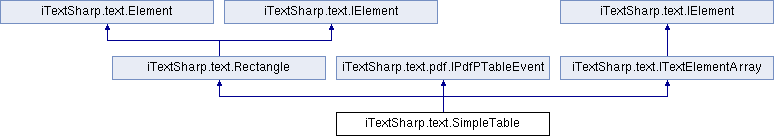

Inheritance diagram for iTextSharp.text.SimpleTable:

Public Member Functions
	SimpleTable ()

void	AddElement (SimpleCell element)

Table	CreateTable ()

PdfPTable	CreatePdfPTable ()

void	TableLayout (PdfPTable table, float[][] widths, float[] heights, int headerRows, int rowStart, PdfContentByte[] canvases)

override bool	IsNestable ()

bool	Add (Object o)

Public Member Functions inherited from iTextSharp.text.Rectangle
	Rectangle (float llx, float lly, float urx, float ury)
	Constructs a Rectangle-object. More...

	Rectangle (float urx, float ury)
	Constructs a Rectangle-object starting from the origin (0, 0). More...

	Rectangle (Rectangle rect)
	Constructs a Rectangle-object. More...

virtual void	CloneNonPositionParameters (Rectangle rect)

virtual void	SoftCloneNonPositionParameters (Rectangle rect)

virtual bool	Process (IElementListener listener)
	Processes the element by adding it (or the different parts) to an IElementListener. More...

bool	IsContent ()

virtual void	Normalize ()

Rectangle	GetRectangle (float top, float bottom)
	Gets a Rectangle that is altered to fit on the page. More...

Rectangle	Rotate ()
	Swaps the values of urx and ury and of lly and llx in order to rotate the rectangle. More...

virtual void	EnableBorderSide (int side)

virtual void	DisableBorderSide (int side)

virtual float	GetLeft (float margin)
	Returns the lower left x-coordinate, considering a given margin. More...

virtual float	GetRight (float margin)
	Returns the upper right x-coordinate, considering a given margin. More...

virtual float	GetTop (float margin)
	Returns the upper right y-coordinate, considering a given margin. More...

virtual float	GetBottom (float margin)
	Returns the lower left y-coordinate, considering a given margin. More...

bool	HasBorders ()
	Indicates if the table has borders. More...

bool	HasBorder (int type)
	Indicates if the table has a some type of border. More...

override String	ToString ()
	Gets the content of the text element. More...

Properties
float	Cellpadding `[get, set]`

float	Cellspacing `[get, set]`

int	Alignment `[get, set]`

override float	Width `[get, set]`

float	Widthpercentage `[get, set]`

override int	Type `[get]`

Properties inherited from iTextSharp.text.Rectangle
virtual int	Type `[get]`
	Gets the type of the text element. More...

virtual ArrayList	Chunks `[get]`
	Gets all the chunks in this element. More...

virtual float	Top `[get, set]`
	Get/set the upper right y-coordinate. More...

virtual int	Border `[get, set]`
	Get/set the border More...

virtual float	GrayFill `[get, set]`
	Get/set the grayscale of the rectangle. More...

virtual float	Left `[get, set]`
	Get/set the lower left x-coordinate. More...

virtual float	Right `[get, set]`
	Get/set the upper right x-coordinate. More...

virtual float	Bottom `[get, set]`
	Get/set the lower left y-coordinate. More...

virtual Color	BorderColorBottom `[get, set]`

virtual Color	BorderColorTop `[get, set]`

virtual Color	BorderColorLeft `[get, set]`

virtual Color	BorderColorRight `[get, set]`

virtual float	Width `[get, set]`
	Returns the width of the rectangle. More...

float	Height `[get]`
	Returns the height of the rectangle. More...

virtual float	BorderWidth `[get, set]`
	Get/set the borderwidth. More...

virtual Color	BorderColor `[get, set]`
	Get/set the color of the border. More...

virtual Color	BackgroundColor `[get, set]`
	Get/set the backgroundcolor. More...

int	Rotation `[get]`
	Returns the rotation More...

virtual float	BorderWidthLeft `[get, set]`

virtual float	BorderWidthRight `[get, set]`

virtual float	BorderWidthTop `[get, set]`

virtual float	BorderWidthBottom `[get, set]`

virtual bool	UseVariableBorders `[get, set]`

Properties inherited from iTextSharp.text.IElement
int	Type `[get]`
	Gets the type of the text element. More...

ArrayList	Chunks `[get]`
	Gets all the chunks in this element. More...

Additional Inherited Members
Static Public Attributes inherited from iTextSharp.text.Rectangle
const int	UNDEFINED = -1
	This is the value that will be used as undefined. More...

const int	TOP_BORDER = 1
	summary> This represents one side of the border of the Rectangle. More...

const int	BOTTOM_BORDER = 2
	summary> This represents one side of the border of the Rectangle. More...

const int	LEFT_BORDER = 4
	summary> This represents one side of the border of the Rectangle. More...

const int	RIGHT_BORDER = 8
	summary> This represents a rectangle without borders. More...

const int	NO_BORDER = 0
	summary> This represents a type of border. More...

const int	BOX = TOP_BORDER + BOTTOM_BORDER + LEFT_BORDER + RIGHT_BORDER

Static Public Attributes inherited from iTextSharp.text.Element
const int	HEADER = 0
	This is a possible type of Element. More...

const int	TITLE = 1
	This is a possible type of Element. More...

const int	SUBJECT = 2
	This is a possible type of Element. More...

const int	KEYWORDS = 3
	This is a possible type of Element. More...

const int	AUTHOR = 4
	This is a possible type of Element. More...

const int	PRODUCER = 5
	This is a possible type of Element. More...

const int	CREATIONDATE = 6
	This is a possible type of Element. More...

const int	CREATOR = 7
	This is a possible type of Element. More...

const int	CHUNK = 10
	This is a possible type of Element. More...

const int	PHRASE = 11
	This is a possible type of Element. More...

const int	PARAGRAPH = 12
	This is a possible type of Element. More...

const int	SECTION = 13
	This is a possible type of Element More...

const int	LIST = 14
	This is a possible type of Element More...

const int	LISTITEM = 15
	This is a possible type of Element More...

const int	CHAPTER = 16
	This is a possible type of Element More...

const int	ANCHOR = 17
	This is a possible type of Element More...

const int	CELL = 20
	This is a possible type of Element. More...

const int	ROW = 21
	This is a possible type of Element. More...

const int	TABLE = 22
	This is a possible type of Element. More...

const int	PTABLE = 23
	This is a possible type of Element. More...

const int	ANNOTATION = 29
	This is a possible type of Element. More...

const int	RECTANGLE = 30
	This is a possible type of Element. More...

const int	JPEG = 32
	This is a possible type of Element. More...

const int	JPEG2000 = 33

const int	IMGRAW = 34
	This is a possible type of Element. More...

const int	IMGTEMPLATE = 35
	This is a possible type of Element. More...

const int	JBIG2 = 36

const int	MULTI_COLUMN_TEXT = 40
	This is a possible type of More...

const int	MARKED = 50

const int	YMARK = 55

const int	ALIGN_UNDEFINED = -1
	A possible value for paragraph Element. This specifies that the text is aligned to the left indent and extra whitespace should be placed on the right. More...

const int	ALIGN_LEFT = 0
	A possible value for paragraph Element. This specifies that the text is aligned to the left indent and extra whitespace should be placed on the right. More...

const int	ALIGN_CENTER = 1
	A possible value for paragraph Element. This specifies that the text is aligned to the center and extra whitespace should be placed equally on the left and right. More...

const int	ALIGN_RIGHT = 2
	A possible value for paragraph Element. This specifies that the text is aligned to the right indent and extra whitespace should be placed on the left. More...

const int	ALIGN_JUSTIFIED = 3
	A possible value for paragraph Element. This specifies that extra whitespace should be spread out through the rows of the paragraph with the text lined up with the left and right indent except on the last line which should be aligned to the left. More...

const int	ALIGN_TOP = 4
	A possible value for vertical Element. More...

const int	ALIGN_MIDDLE = 5
	A possible value for vertical Element. More...

const int	ALIGN_BOTTOM = 6
	A possible value for vertical Element. More...

const int	ALIGN_BASELINE = 7
	A possible value for vertical Element. More...

const int	ALIGN_JUSTIFIED_ALL = 8
	Does the same as ALIGN_JUSTIFIED but the last line is also spread out. More...

const int	CCITTG4 = 0x100
	Pure two-dimensional encoding (Group 4) More...

const int	CCITTG3_1D = 0x101
	Pure one-dimensional encoding (Group 3, 1-D) More...

const int	CCITTG3_2D = 0x102
	Mixed one- and two-dimensional encoding (Group 3, 2-D) More...

const int	CCITT_BLACKIS1 = 1
	A flag indicating whether 1-bits are to be interpreted as black pixels and 0-bits as white pixels, More...

const int	CCITT_ENCODEDBYTEALIGN = 2
	A flag indicating whether the filter expects extra 0-bits before each encoded line so that the line begins on a byte boundary. More...

const int	CCITT_ENDOFLINE = 4
	A flag indicating whether end-of-line bit patterns are required to be present in the encoding. More...

const int	CCITT_ENDOFBLOCK = 8
	A flag indicating whether the filter expects the encoded data to be terminated by an end-of-block pattern, overriding the Rows parameter. The use of this flag will set the key /EndOfBlock to false. More...

Protected Attributes inherited from iTextSharp.text.Rectangle
float	llx
	the lower left x-coordinate. More...

float	lly
	summary> the upper right x-coordinate. More...

float	urx
	summary> the upper right y-coordinate. More...

float	ury
	summary> This represents the status of the 4 sides of the rectangle. More...

int	border = UNDEFINED
	summary> This is the width of the border around this rectangle. More...

float	borderWidth = UNDEFINED
	summary> This is the color of the border of this rectangle. More...

Color	borderColor = null

Color	borderColorLeft = null

Color	borderColorRight = null

Color	borderColorTop = null

Color	borderColorBottom = null

float	borderWidthLeft = UNDEFINED

float	borderWidthRight = UNDEFINED

float	borderWidthTop = UNDEFINED

float	borderWidthBottom = UNDEFINED

bool	useVariableBorders = false
	summary> This is the color of the background of this rectangle. More...

Color	backgroundColor = null
	summary> This is the rotation value of this rectangle. More...

int	rotation = 0

Detailed Description

Summary description for SimpleTable.

Constructor & Destructor Documentation

◆ SimpleTable()

iTextSharp.text.SimpleTable.SimpleTable ( )

A RectangleCell is always constructed without any dimensions. Dimensions are defined after creation.

Member Function Documentation

◆ Add()

bool iTextSharp.text.SimpleTable.Add ( Object o )

See also: com.lowagie.text.TextElementArray::add(java.lang.Object)

Implements iTextSharp.text.ITextElementArray.

◆ AddElement()

void iTextSharp.text.SimpleTable.AddElement ( SimpleCell element )

Adds content to this object.

Parameters

element

Exceptions

BadElementException

◆ CreatePdfPTable()

PdfPTable iTextSharp.text.SimpleTable.CreatePdfPTable ( )

Creates a PdfPTable object based on this TableAttributes object.

Returns: a com.lowagie.text.pdf.PdfPTable object

Exceptions

DocumentException

◆ CreateTable()

Table iTextSharp.text.SimpleTable.CreateTable ( )

Creates a Table object based on this TableAttributes object.

Returns: a com.lowagie.text.Table object

Exceptions

BadElementException

◆ IsNestable()

override bool iTextSharp.text.SimpleTable.IsNestable ( )

virtual

See also: com.lowagie.text.Element::isNestable()

Since: iText 2.0.8

Reimplemented from iTextSharp.text.Rectangle.

◆ TableLayout()

void iTextSharp.text.SimpleTable.TableLayout	(	PdfPTable	table,
		float	widths[][],
		float[]	heights,
		int	headerRows,
		int	rowStart,
		PdfContentByte[]	canvases
	)

See also: com.lowagie.text.pdf.PdfPTableEvent::tableLayout(com.lowagie.text.pdf.PdfPTable, float[][], float[], int, int, com.lowagie.text.pdf.PdfContentByte[])

Implements iTextSharp.text.pdf.IPdfPTableEvent.

Property Documentation

◆ Alignment

int iTextSharp.text.SimpleTable.Alignment

getset

Returns: Returns the alignment.

◆ Cellpadding

float iTextSharp.text.SimpleTable.Cellpadding

getset

Returns: Returns the cellpadding.

◆ Cellspacing

float iTextSharp.text.SimpleTable.Cellspacing

getset

Returns: Returns the cellspacing.

◆ Type

override int iTextSharp.text.SimpleTable.Type

get

See also: com.lowagie.text.Element::type()

◆ Width

override float iTextSharp.text.SimpleTable.Width

getset

Returns: Returns the width.

◆ Widthpercentage

float iTextSharp.text.SimpleTable.Widthpercentage

getset

Returns: Returns the widthpercentage.

The documentation for this class was generated from the following file:

src/core/iTextSharp/text/SimpleTable.cs

Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SimpleTable()

Member Function Documentation

◆ Add()

◆ AddElement()

◆ CreatePdfPTable()

◆ CreateTable()

◆ IsNestable()

◆ TableLayout()

Property Documentation

◆ Alignment

◆ Cellpadding

◆ Cellspacing

◆ Type

◆ Width

◆ Widthpercentage
