iTextSharp.text.pdf.PdfContentByte Class Reference

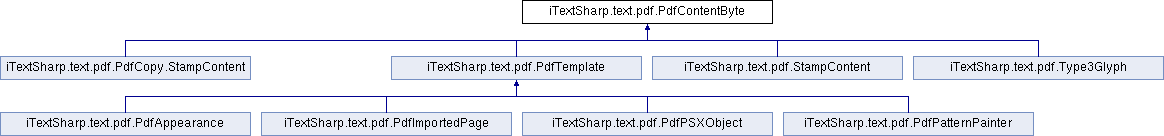

Inheritance diagram for iTextSharp.text.pdf.PdfContentByte:

Classes
class	GraphicState

Public Member Functions
	PdfContentByte (PdfWriter wr)
override string	ToString ()
byte[]	ToPdf (PdfWriter writer)
void	Add (PdfContentByte other)
void	SetLeading (float v)
void	SetFlatness (float value)
void	SetLineCap (int value)
void	SetLineDash (float value)
void	SetLineDash (float unitsOn, float phase)
void	SetLineDash (float unitsOn, float unitsOff, float phase)
void	SetLineDash (float[] array, float phase)
void	SetLineJoin (int value)
void	SetLineWidth (float value)
void	SetMiterLimit (float value)
void	Clip ()
void	EoClip ()
virtual void	SetGrayFill (float value)
virtual void	ResetGrayFill ()
virtual void	SetGrayStroke (float value)
virtual void	ResetGrayStroke ()
virtual void	SetRGBColorFillF (float red, float green, float blue)
virtual void	ResetRGBColorFill ()
virtual void	SetRGBColorStrokeF (float red, float green, float blue)
virtual void	ResetRGBColorStroke ()
virtual void	SetCMYKColorFillF (float cyan, float magenta, float yellow, float black)
virtual void	ResetCMYKColorFill ()
virtual void	SetCMYKColorStrokeF (float cyan, float magenta, float yellow, float black)
virtual void	ResetCMYKColorStroke ()
void	MoveTo (float x, float y)
void	LineTo (float x, float y)
void	CurveTo (float x1, float y1, float x2, float y2, float x3, float y3)
void	CurveTo (float x2, float y2, float x3, float y3)
void	CurveFromTo (float x1, float y1, float x3, float y3)
void	Circle (float x, float y, float r)
void	Rectangle (float x, float y, float w, float h)
void	VariableRectangle (Rectangle rect)
void	Rectangle (Rectangle rectangle)
void	ClosePath ()
void	NewPath ()
void	Stroke ()
void	ClosePathStroke ()
void	Fill ()
void	EoFill ()
void	FillStroke ()
void	ClosePathFillStroke ()
void	EoFillStroke ()
void	ClosePathEoFillStroke ()
virtual void	AddImage (Image image)
virtual void	AddImage (Image image, bool inlineImage)
virtual void	AddImage (Image image, float a, float b, float c, float d, float e, float f)
virtual void	AddImage (Image image, float a, float b, float c, float d, float e, float f, bool inlineImage)
void	Reset ()
void	Reset (bool validateContent)
void	BeginText ()
void	EndText ()
void	SaveState ()
void	RestoreState ()
void	SetCharacterSpacing (float value)
void	SetWordSpacing (float value)
void	SetHorizontalScaling (float value)
virtual void	SetFontAndSize (BaseFont bf, float size)
void	SetTextRenderingMode (int value)
void	SetTextRise (float value)
void	ShowText (string text)
void	ShowTextKerned (String text)
void	NewlineShowText (string text)
void	NewlineShowText (float wordSpacing, float charSpacing, string text)
void	SetTextMatrix (float a, float b, float c, float d, float x, float y)
void	SetTextMatrix (float x, float y)
void	MoveText (float x, float y)
void	MoveTextWithLeading (float x, float y)
void	NewlineText ()
void	AddOutline (PdfOutline outline, string name)
float	GetEffectiveStringWidth (String text, bool kerned)
void	ShowTextAligned (int alignment, String text, float x, float y, float rotation)
void	ShowTextAlignedKerned (int alignment, String text, float x, float y, float rotation)
void	ConcatCTM (float a, float b, float c, float d, float e, float f)
void	Arc (float x1, float y1, float x2, float y2, float startAng, float extent)
void	Ellipse (float x1, float y1, float x2, float y2)
PdfPatternPainter	CreatePattern (float width, float height, float xstep, float ystep)
PdfPatternPainter	CreatePattern (float width, float height)
PdfPatternPainter	CreatePattern (float width, float height, float xstep, float ystep, Color color)
PdfPatternPainter	CreatePattern (float width, float height, Color color)
PdfTemplate	CreateTemplate (float width, float height)
PdfAppearance	CreateAppearance (float width, float height)
void	AddPSXObject (PdfPSXObject psobject)
virtual void	AddTemplate (PdfTemplate template, float a, float b, float c, float d, float e, float f)
void	AddTemplate (PdfTemplate template, float x, float y)
virtual void	SetCMYKColorFill (int cyan, int magenta, int yellow, int black)
virtual void	SetCMYKColorStroke (int cyan, int magenta, int yellow, int black)
virtual void	SetRGBColorFill (int red, int green, int blue)
virtual void	SetRGBColorStroke (int red, int green, int blue)
virtual void	SetColorStroke (Color value)
virtual void	SetColorFill (Color value)
virtual void	SetColorFill (PdfSpotColor sp, float tint)
virtual void	SetColorStroke (PdfSpotColor sp, float tint)
virtual void	SetPatternFill (PdfPatternPainter p)
virtual void	SetPatternFill (PdfPatternPainter p, Color color)
virtual void	SetPatternFill (PdfPatternPainter p, Color color, float tint)
virtual void	SetPatternStroke (PdfPatternPainter p, Color color)
virtual void	SetPatternStroke (PdfPatternPainter p, Color color, float tint)
virtual void	SetPatternStroke (PdfPatternPainter p)
virtual void	PaintShading (PdfShading shading)
virtual void	PaintShading (PdfShadingPattern shading)
virtual void	SetShadingFill (PdfShadingPattern shading)
virtual void	SetShadingStroke (PdfShadingPattern shading)
void	ShowText (PdfTextArray text)
void	LocalGoto (string name, float llx, float lly, float urx, float ury)
bool	LocalDestination (string name, PdfDestination destination)
void	RemoteGoto (string filename, string name, float llx, float lly, float urx, float ury)
void	RemoteGoto (string filename, int page, float llx, float lly, float urx, float ury)
void	RoundRectangle (float x, float y, float w, float h, float r)
virtual void	SetAction (PdfAction action, float llx, float lly, float urx, float ury)
void	SetLiteral (string s)
void	SetLiteral (char c)
void	SetLiteral (float n)
void	DrawRadioField (float llx, float lly, float urx, float ury, bool on)
void	DrawTextField (float llx, float lly, float urx, float ury)
void	DrawButton (float llx, float lly, float urx, float ury, string text, BaseFont bf, float size)
void	SetGState (PdfGState gstate)
void	BeginLayer (IPdfOCG layer)
void	EndLayer ()
virtual void	SetDefaultColorspace (PdfName name, PdfObject obj)
void	Transform (System.Drawing.Drawing2D.Matrix tx)
void	BeginMarkedContentSequence (PdfStructureElement struc)
void	EndMarkedContentSequence ()
void	BeginMarkedContentSequence (PdfName tag, PdfDictionary property, bool inline)
void	BeginMarkedContentSequence (PdfName tag)
void	SanityCheck ()
virtual void	AddFormXObj (PdfStream template, PdfName name, float a, float b, float c, float d, float e, float f)

Static Public Member Functions
static PdfTextArray	GetKernArray (String text, BaseFont font)
static ArrayList	BezierArc (float x1, float y1, float x2, float y2, float startAng, float extent)

Static Public Attributes
const int	ALIGN_CENTER = Element.ALIGN_CENTER
const int	ALIGN_LEFT = Element.ALIGN_LEFT
const int	ALIGN_RIGHT = Element.ALIGN_RIGHT
const int	LINE_CAP_BUTT = 0
const int	LINE_CAP_ROUND = 1
const int	LINE_CAP_PROJECTING_SQUARE = 2
const int	LINE_JOIN_MITER = 0
const int	LINE_JOIN_ROUND = 1
const int	LINE_JOIN_BEVEL = 2
const int	TEXT_RENDER_MODE_FILL = 0
const int	TEXT_RENDER_MODE_STROKE = 1
const int	TEXT_RENDER_MODE_FILL_STROKE = 2
const int	TEXT_RENDER_MODE_INVISIBLE = 3
const int	TEXT_RENDER_MODE_FILL_CLIP = 4
const int	TEXT_RENDER_MODE_STROKE_CLIP = 5
const int	TEXT_RENDER_MODE_FILL_STROKE_CLIP = 6
const int	TEXT_RENDER_MODE_CLIP = 7

Protected Member Functions
virtual void	CheckWriter ()

Protected Attributes
ByteBuffer	content = new ByteBuffer()
PdfWriter	writer
PdfDocument	pdf
GraphicState	state = new GraphicState()
ArrayList	layerDepth
ArrayList	stateList = new ArrayList()
int	separator = '\n'

Properties
ByteBuffer	InternalBuffer [get]
float	XTLM [get]
float	YTLM [get]
float	CharacterSpacing [get]
float	WordSpacing [get]
float	HorizontalScaling [get]
float	Leading [get]
PdfOutline	RootOutline [get]
PdfWriter	PdfWriter [get]
PdfDocument	PdfDocument [get]
virtual PdfContentByte	Duplicate [get]

Detailed Description

PdfContentByte is an object containing the user positioned text and graphic contents of a page. It knows how to apply the proper font encoding.

Constructor & Destructor Documentation

PdfContentByte()

iTextSharp.text.pdf.PdfContentByte.PdfContentByte

(

PdfWriter

wr

)

Constructs a new PdfContentByte-object.

Parameters

wr	the writer associated to this content

Member Function Documentation

Add()

void iTextSharp.text.pdf.PdfContentByte.Add

(

PdfContentByte

other

)

Adds the content of another PdfContent-object to this object.

Parameters

other

another PdfByteContent-object

AddFormXObj()

virtual void iTextSharp.text.pdf.PdfContentByte.AddFormXObj ( PdfStream  template, PdfName  name, float  a, float  b, float  c, float  d, float  e, float  f  )

virtual

AddImage() [1/4]

virtual void iTextSharp.text.pdf.PdfContentByte.AddImage ( Image  image )

virtual

Adds an Image to the page. The Image must have absolute positioning.

Parameters


the Image object

Exceptions

DocumentException

if the Image does not have absolute positioning

AddImage() [2/4]

virtual void iTextSharp.text.pdf.PdfContentByte.AddImage ( Image  image, bool  inlineImage  )

virtual

Adds an Image to the page. The Image must have absolute positioning. The image can be placed inline.

Parameters

image	the Image object
inlineImage	true to place this image inline, false otherwise

Exceptions

DocumentException

if the Image does not have absolute positioning

AddImage() [3/4]

virtual void iTextSharp.text.pdf.PdfContentByte.AddImage ( Image  image, float  a, float  b, float  c, float  d, float  e, float  f  )

virtual

Adds an Image to the page. The positioning of the Image is done with the transformation matrix. To position an image at (x,y) use AddImage(image, image_width, 0, 0, image_height, x, y).

Parameters

image	the Image object
a	an element of the transformation matrix
b	an element of the transformation matrix
c	an element of the transformation matrix
d	an element of the transformation matrix
e	an element of the transformation matrix
f	an element of the transformation matrix

Exceptions

DocumentException

on error

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter, and iTextSharp.text.pdf.PdfImportedPage.

AddImage() [4/4]

virtual void iTextSharp.text.pdf.PdfContentByte.AddImage ( Image  image, float  a, float  b, float  c, float  d, float  e, float  f, bool  inlineImage  )

virtual

Adds an Image to the page. The positioning of the Image is done with the transformation matrix. To position an image at (x,y) use AddImage(image, image_width, 0, 0, image_height, x, y). The image can be placed inline.

Parameters

image	the Image object
a	an element of the transformation matrix
b	an element of the transformation matrix
c	an element of the transformation matrix
d	an element of the transformation matrix
e	an element of the transformation matrix
f	an element of the transformation matrix
inlineImage	true to place this image inline, false otherwise

Exceptions

DocumentException

on error

Reimplemented in iTextSharp.text.pdf.Type3Glyph.

AddOutline()

void iTextSharp.text.pdf.PdfContentByte.AddOutline	(	PdfOutline	outline,
		string	name
	)

Adds a named outline to the document.

Parameters

outline	the outline
name	the name for the local destination

AddPSXObject()

void iTextSharp.text.pdf.PdfContentByte.AddPSXObject

(

PdfPSXObject

psobject

)

Adds a PostScript XObject to this content.

Parameters

psobject

the object

AddTemplate() [1/2]

virtual void iTextSharp.text.pdf.PdfContentByte.AddTemplate ( PdfTemplate  template, float  a, float  b, float  c, float  d, float  e, float  f  )

virtual

Adds a template to this content.

Parameters

template	the template
a	an element of the transformation matrix
b	an element of the transformation matrix
c	an element of the transformation matrix
d	an element of the transformation matrix
e	an element of the transformation matrix
f	an element of the transformation matrix

Reimplemented in iTextSharp.text.pdf.PdfImportedPage.

AddTemplate() [2/2]

void iTextSharp.text.pdf.PdfContentByte.AddTemplate	(	PdfTemplate	template,
		float	x,
		float	y
	)

Adds a template to this content.

Parameters

template	the template
x	the x location of this template
y	the y location of this template

Arc()

void iTextSharp.text.pdf.PdfContentByte.Arc	(	float	x1,
		float	y1,
		float	x2,
		float	y2,
		float	startAng,
		float	extent
	)

Draws a partial ellipse inscribed within the rectangle x1,y1,x2,y2, starting at startAng degrees and covering extent degrees. Angles start with 0 to the right (+x) and increase counter-clockwise.

Parameters

x1	a corner of the enclosing rectangle
y1	a corner of the enclosing rectangle
x2	a corner of the enclosing rectangle
y2	a corner of the enclosing rectangle
startAng	starting angle in degrees
extent	angle extent in degrees

BeginLayer()

void iTextSharp.text.pdf.PdfContentByte.BeginLayer

(

IPdfOCG

layer

)

Begins a graphic block whose visibility is controled by the layer. Blocks can be nested. Each block must be terminated by an endLayer().

Note that nested layers with PdfLayer#addChild(PdfLayer) only require a single call to this method and a single call to endLayer(); all the nesting control is built in.

Parameters

layer

the layer

BeginMarkedContentSequence() [1/3]

void iTextSharp.text.pdf.PdfContentByte.BeginMarkedContentSequence

(

PdfName

tag

)

This is just a shorthand to beginMarkedContentSequence(tag, null, false).

Parameters

tag

the tag

BeginMarkedContentSequence() [2/3]

void iTextSharp.text.pdf.PdfContentByte.BeginMarkedContentSequence	(	PdfName	tag,
		PdfDictionary	property,
		bool	inline
	)

Begins a marked content sequence. If property is null the mark will be of the type BMC otherwise it will be BDC.

Parameters

tag	the tag
property	the property
inline	true to include the property in the content or false to include the property in the resource dictionary with the possibility of reusing

BeginMarkedContentSequence() [3/3]

void iTextSharp.text.pdf.PdfContentByte.BeginMarkedContentSequence

(

PdfStructureElement

struc

)

Begins a marked content sequence. This sequence will be tagged with the structure struc. The same structure can be used several times to connect text that belongs to the same logical segment but is in a different location, like the same paragraph crossing to another page, for example.

Parameters

struc

the tagging structure

BeginText()

void iTextSharp.text.pdf.PdfContentByte.BeginText

(

)

Starts the writing of text.

BezierArc()

static ArrayList iTextSharp.text.pdf.PdfContentByte.BezierArc ( float  x1, float  y1, float  x2, float  y2, float  startAng, float  extent  )

static

Generates an array of bezier curves to draw an arc.

(x1, y1) and (x2, y2) are the corners of the enclosing rectangle. Angles, measured in degrees, start with 0 to the right (the positive X axis) and increase counter-clockwise. The arc extends from startAng to startAng+extent. I.e. startAng=0 and extent=180 yields an openside-down semi-circle.

The resulting coordinates are of the form float[]{x1,y1,x2,y2,x3,y3, x4,y4} such that the curve goes from (x1, y1) to (x4, y4) with (x2, y2) and (x3, y3) as their respective Bezier control points.

Note: this code was taken from ReportLab (www.reportlab.com), an excelent PDF generator for Python.

Parameters

x1	a corner of the enclosing rectangle
y1	a corner of the enclosing rectangle
x2	a corner of the enclosing rectangle
y2	a corner of the enclosing rectangle
startAng	starting angle in degrees
extent	angle extent in degrees

Returns

a list of float[] with the bezier curves

CheckWriter()

virtual void iTextSharp.text.pdf.PdfContentByte.CheckWriter ( )

protectedvirtual

Check if we have a valid PdfWriter.

Circle()

void iTextSharp.text.pdf.PdfContentByte.Circle	(	float	x,
		float	y,
		float	r
	)

Draws a circle. The endpoint will (x+r, y).

Parameters

x	x center of circle
y	y center of circle
r	radius of circle

Clip()

void iTextSharp.text.pdf.PdfContentByte.Clip

(

)

Modify the current clipping path by intersecting it with the current path, using the nonzero winding number rule to determine which regions lie inside the clipping path.

ClosePath()

void iTextSharp.text.pdf.PdfContentByte.ClosePath

(

)

Closes the current subpath by appending a straight line segment from the current point to the starting point of the subpath.

ClosePathEoFillStroke()

void iTextSharp.text.pdf.PdfContentByte.ClosePathEoFillStroke

(

)

Closes the path, fills it using the even-odd rule to determine the region to fill and strokes it.

ClosePathFillStroke()

void iTextSharp.text.pdf.PdfContentByte.ClosePathFillStroke

(

)

Closes the path, fills it using the non-zero winding number rule to determine the region to fill and strokes it.

ClosePathStroke()

void iTextSharp.text.pdf.PdfContentByte.ClosePathStroke

(

)

Closes the path and strokes it.

ConcatCTM()

void iTextSharp.text.pdf.PdfContentByte.ConcatCTM	(	float	a,
		float	b,
		float	c,
		float	d,
		float	e,
		float	f
	)

Concatenate a matrix to the current transformation matrix.

Parameters

a	an element of the transformation matrix
b	an element of the transformation matrix
c	an element of the transformation matrix
d	an element of the transformation matrix
e	an element of the transformation matrix
f	an element of the transformation matrix

CreateAppearance()

PdfAppearance iTextSharp.text.pdf.PdfContentByte.CreateAppearance	(	float	width,
		float	height
	)

Creates a new appearance to be used with form fields.

Parameters

width	the bounding box width
height	the bounding box height

Returns

the appearance created

CreatePattern() [1/4]

PdfPatternPainter iTextSharp.text.pdf.PdfContentByte.CreatePattern	(	float	width,
		float	height
	)

Create a new colored tiling pattern. Variables xstep and ystep are set to the same values of width and height.

Parameters

width	the width of the pattern
height	the height of the pattern

Returns

the PdfPatternPainter where the pattern will be created

CreatePattern() [2/4]

PdfPatternPainter iTextSharp.text.pdf.PdfContentByte.CreatePattern	(	float	width,
		float	height,
		Color	color
	)

Create a new uncolored tiling pattern. Variables xstep and ystep are set to the same values of width and height.

Parameters

width	the width of the pattern
height	the height of the pattern
color	the default color. Can be null

Returns

the PdfPatternPainter where the pattern will be created

CreatePattern() [3/4]

PdfPatternPainter iTextSharp.text.pdf.PdfContentByte.CreatePattern	(	float	width,
		float	height,
		float	xstep,
		float	ystep
	)

Create a new colored tiling pattern.

Parameters

width	the width of the pattern
height	the height of the pattern
xstep	the desired horizontal spacing between pattern cells. May be either positive or negative, but not zero.
ystep	the desired vertical spacing between pattern cells. May be either positive or negative, but not zero.

Returns

the PdfPatternPainter where the pattern will be created

CreatePattern() [4/4]

PdfPatternPainter iTextSharp.text.pdf.PdfContentByte.CreatePattern	(	float	width,
		float	height,
		float	xstep,
		float	ystep,
		Color	color
	)

Create a new uncolored tiling pattern.

Parameters

width	the width of the pattern
height	the height of the pattern
xstep	the desired horizontal spacing between pattern cells. May be either positive or negative, but not zero.
ystep	the desired vertical spacing between pattern cells. May be either positive or negative, but not zero.
color	the default color. Can be null

Returns

the PdfPatternPainter where the pattern will be created

CreateTemplate()

PdfTemplate iTextSharp.text.pdf.PdfContentByte.CreateTemplate	(	float	width,
		float	height
	)

Creates a new template.

Creates a new template that is nothing more than a form XObject. This template can be included in this PdfContentByte or in another template. Templates are only written to the output when the document is closed permitting things like showing text in the first page that is only defined in the last page.

Parameters

width	the bounding box width
height	the bounding box height

Returns

the templated created

CurveFromTo()

void iTextSharp.text.pdf.PdfContentByte.CurveFromTo	(	float	x1,
		float	y1,
		float	x3,
		float	y3
	)

Appends a Bêzier curve to the path, starting from the current point.

Parameters

x1	x-coordinate of the first control point
y1	y-coordinate of the first control point
x3	x-coordinaat of the ending point (= new current point)
y3	y-coordinaat of the ending point (= new current point)

CurveTo() [1/2]

void iTextSharp.text.pdf.PdfContentByte.CurveTo	(	float	x1,
		float	y1,
		float	x2,
		float	y2,
		float	x3,
		float	y3
	)

Appends a Bêzier curve to the path, starting from the current point.

Parameters

x1	x-coordinate of the first control point
y1	y-coordinate of the first control point
x2	x-coordinate of the second control point
y2	y-coordinate of the second control point
x3	x-coordinaat of the ending point (= new current point)
y3	y-coordinaat of the ending point (= new current point)

CurveTo() [2/2]

void iTextSharp.text.pdf.PdfContentByte.CurveTo	(	float	x2,
		float	y2,
		float	x3,
		float	y3
	)

Appends a Bêzier curve to the path, starting from the current point.

Parameters

x2	x-coordinate of the second control point
y2	y-coordinate of the second control point
x3	x-coordinaat of the ending point (= new current point)
y3	y-coordinaat of the ending point (= new current point)

DrawButton()

void iTextSharp.text.pdf.PdfContentByte.DrawButton	(	float	llx,
		float	lly,
		float	urx,
		float	ury,
		string	text,
		BaseFont	bf,
		float	size
	)

Draws a button.

DrawRadioField()

void iTextSharp.text.pdf.PdfContentByte.DrawRadioField	(	float	llx,
		float	lly,
		float	urx,
		float	ury,
		bool	on
	)

Draws a TextField.

DrawTextField()

void iTextSharp.text.pdf.PdfContentByte.DrawTextField	(	float	llx,
		float	lly,
		float	urx,
		float	ury
	)

Draws a TextField.

Ellipse()

void iTextSharp.text.pdf.PdfContentByte.Ellipse	(	float	x1,
		float	y1,
		float	x2,
		float	y2
	)

Draws an ellipse inscribed within the rectangle x1,y1,x2,y2.

Parameters

x1	a corner of the enclosing rectangle
y1	a corner of the enclosing rectangle
x2	a corner of the enclosing rectangle
y2	a corner of the enclosing rectangle

EndLayer()

void iTextSharp.text.pdf.PdfContentByte.EndLayer

(

)

Ends a layer controled graphic block. It will end the most recent open block.

EndMarkedContentSequence()

void iTextSharp.text.pdf.PdfContentByte.EndMarkedContentSequence

(

)

Ends a marked content sequence

EndText()

void iTextSharp.text.pdf.PdfContentByte.EndText

(

)

Ends the writing of text and makes the current font invalid.

EoClip()

void iTextSharp.text.pdf.PdfContentByte.EoClip

(

)

Modify the current clipping path by intersecting it with the current path, using the even-odd rule to determine which regions lie inside the clipping path.

EoFill()

void iTextSharp.text.pdf.PdfContentByte.EoFill

(

)

Fills the path, using the even-odd rule to determine the region to fill.

EoFillStroke()

void iTextSharp.text.pdf.PdfContentByte.EoFillStroke

(

)

Fills the path, using the even-odd rule to determine the region to fill and strokes it.

Fill()

void iTextSharp.text.pdf.PdfContentByte.Fill

(

)

Fills the path, using the non-zero winding number rule to determine the region to fill.

FillStroke()

void iTextSharp.text.pdf.PdfContentByte.FillStroke

(

)

Fills the path using the non-zero winding number rule to determine the region to fill and strokes it.

GetEffectiveStringWidth()

float iTextSharp.text.pdf.PdfContentByte.GetEffectiveStringWidth	(	String	text,
		bool	kerned
	)

Computes the width of the given string taking in account the current values of "Character spacing", "Word Spacing" and "Horizontal Scaling". The additional spacing is not computed for the last character of the string.

Parameters

text	the string to get width of
kerned	the kerning option

Returns

the width

GetKernArray()

static PdfTextArray iTextSharp.text.pdf.PdfContentByte.GetKernArray ( String  text, BaseFont  font  )

static

Constructs a kern array for a text in a certain font

Parameters

text	the text
font	the font

Returns

a PdfTextArray

LineTo()

void iTextSharp.text.pdf.PdfContentByte.LineTo	(	float	x,
		float	y
	)

Appends a straight line segment from the current point (x, y). The new current point is (x, y).

Parameters

x	new x-coordinate
y	new y-coordinate

LocalDestination()

bool iTextSharp.text.pdf.PdfContentByte.LocalDestination	(	string	name,
		PdfDestination	destination
	)

The local destination to where a local goto with the same name will jump.

Parameters

name	the name of this local destination
destination	the PdfDestination with the jump coordinates

Returns

true if the local destination was added, false if a local destination with the same name already exists

LocalGoto()

void iTextSharp.text.pdf.PdfContentByte.LocalGoto	(	string	name,
		float	llx,
		float	lly,
		float	urx,
		float	ury
	)

Implements a link to other part of the document. The jump will be made to a local destination with the same name, that must exist.

Parameters

name	the name for this link
llx	the lower left x corner of the activation area
lly	the lower left y corner of the activation area
urx	the upper right x corner of the activation area
ury	the upper right y corner of the activation area

MoveText()

void iTextSharp.text.pdf.PdfContentByte.MoveText	(	float	x,
		float	y
	)

Moves to the start of the next line, offset from the start of the current line.

Parameters

x	x-coordinate of the new current point
y	y-coordinate of the new current point

MoveTextWithLeading()

void iTextSharp.text.pdf.PdfContentByte.MoveTextWithLeading	(	float	x,
		float	y
	)

Moves to the start of the next line, offset from the start of the current line.

As a side effect, this sets the leading parameter in the text state.

Parameters

x	offset of the new current point
y	y-coordinate of the new current point

MoveTo()

void iTextSharp.text.pdf.PdfContentByte.MoveTo	(	float	x,
		float	y
	)

Move the current point (x, y), omitting any connecting line segment.

Parameters

x	new x-coordinate
y	new y-coordinate

NewlineShowText() [1/2]

void iTextSharp.text.pdf.PdfContentByte.NewlineShowText	(	float	wordSpacing,
		float	charSpacing,
		string	text
	)

Moves to the next line and shows text string, using the given values of the character and word spacing parameters.

Parameters

wordSpacing	a parameter
charSpacing	a parameter
text	the text to write

NewlineShowText() [2/2]

void iTextSharp.text.pdf.PdfContentByte.NewlineShowText

(

string

text

)

Moves to the next line and shows text.

Parameters

text	the text to write

NewlineText()

void iTextSharp.text.pdf.PdfContentByte.NewlineText

(

)

Moves to the start of the next line.

NewPath()

void iTextSharp.text.pdf.PdfContentByte.NewPath

(

)

Ends the path without filling or stroking it.

PaintShading() [1/2]

virtual void iTextSharp.text.pdf.PdfContentByte.PaintShading ( PdfShading  shading )

virtual

Paints using a shading object.

Parameters

shading

the shading object

PaintShading() [2/2]

virtual void iTextSharp.text.pdf.PdfContentByte.PaintShading ( PdfShadingPattern  shading )

virtual

Paints using a shading pattern.

Parameters

shading

the shading pattern

Rectangle() [1/2]

void iTextSharp.text.pdf.PdfContentByte.Rectangle	(	float	x,
		float	y,
		float	w,
		float	h
	)

Adds a rectangle to the current path.

Parameters

x	x-coordinate of the starting point
y	y-coordinate of the starting point
w	width
h	height

Rectangle() [2/2]

void iTextSharp.text.pdf.PdfContentByte.Rectangle

(

Rectangle

rectangle

)

Adds a border (complete or partially) to the current path..

Parameters

rectangle

a Rectangle

RemoteGoto() [1/2]

void iTextSharp.text.pdf.PdfContentByte.RemoteGoto	(	string	filename,
		int	page,
		float	llx,
		float	lly,
		float	urx,
		float	ury
	)

Implements a link to another document.

Parameters

filename	the filename for the remote document
page	the page to jump to
llx	the lower left x corner of the activation area
lly	the lower left y corner of the activation area
urx	the upper right x corner of the activation area
ury	the upper right y corner of the activation area

RemoteGoto() [2/2]

void iTextSharp.text.pdf.PdfContentByte.RemoteGoto	(	string	filename,
		string	name,
		float	llx,
		float	lly,
		float	urx,
		float	ury
	)

Implements a link to another document.

Parameters

filename	the filename for the remote document
name	the name to jump to
llx	the lower left x corner of the activation area
lly	the lower left y corner of the activation area
urx	the upper right x corner of the activation area
ury	the upper right y corner of the activation area

Reset() [1/2]

void iTextSharp.text.pdf.PdfContentByte.Reset

(

)

Makes this PdfContentByte empty. Calls reset( true )

Reset() [2/2]

void iTextSharp.text.pdf.PdfContentByte.Reset

(

bool

validateContent

)

Makes this PdfContentByte empty.

Parameters

validateContent

will call sanityCheck() if true.

Since

2.1.6

ResetCMYKColorFill()

virtual void iTextSharp.text.pdf.PdfContentByte.ResetCMYKColorFill ( )

virtual

Changes the current color for filling paths to black.

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

ResetCMYKColorStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.ResetCMYKColorStroke ( )

virtual

Changes the current color for stroking paths to black.

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

ResetGrayFill()

virtual void iTextSharp.text.pdf.PdfContentByte.ResetGrayFill ( )

virtual

Changes the current gray tint for filling paths to black.

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

ResetGrayStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.ResetGrayStroke ( )

virtual

Changes the current gray tint for stroking paths to black.

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

ResetRGBColorFill()

virtual void iTextSharp.text.pdf.PdfContentByte.ResetRGBColorFill ( )

virtual

Changes the current color for filling paths to black.

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

ResetRGBColorStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.ResetRGBColorStroke ( )

virtual

Changes the current color for stroking paths to black.

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

RestoreState()

void iTextSharp.text.pdf.PdfContentByte.RestoreState

(

)

Restores the graphic state. saveState and restoreState must be balanced.

RoundRectangle()

void iTextSharp.text.pdf.PdfContentByte.RoundRectangle	(	float	x,
		float	y,
		float	w,
		float	h,
		float	r
	)

Adds a round rectangle to the current path.

Parameters

x	x-coordinate of the starting point
y	y-coordinate of the starting point
w	width
h	height
r	radius of the arc corner

SanityCheck()

void iTextSharp.text.pdf.PdfContentByte.SanityCheck

(

)

Checks for any dangling state: Mismatched save/restore state, begin/end text, begin/end layer, or begin/end marked content sequence. If found, this function will throw. This function is called automatically during a reset() (from Document.newPage() for example), and before writing itself out in toPdf(). One possible cause: not calling myPdfGraphics2D.dispose() will leave dangling saveState() calls.

Since

2.1.6

Exceptions

IllegalPdfSyntaxException

(a runtime exception)

SaveState()

void iTextSharp.text.pdf.PdfContentByte.SaveState

(

)

Saves the graphic state. saveState and restoreState must be balanced.

SetAction()

virtual void iTextSharp.text.pdf.PdfContentByte.SetAction ( PdfAction  action, float  llx, float  lly, float  urx, float  ury  )

virtual

Implements an action in an area.

Parameters

action	the PdfAction
llx	the lower left x corner of the activation area
lly	the lower left y corner of the activation area
urx	the upper right x corner of the activation area
ury	the upper right y corner of the activation area

Reimplemented in iTextSharp.text.pdf.StampContent.

SetCharacterSpacing()

void iTextSharp.text.pdf.PdfContentByte.SetCharacterSpacing

(

float

value

)

Sets the character spacing parameter.

Parameters

charSpace

a parameter

SetCMYKColorFill()

virtual void iTextSharp.text.pdf.PdfContentByte.SetCMYKColorFill ( int  cyan, int  magenta, int  yellow, int  black  )

virtual

Changes the current color for filling paths (device dependent colors!).

Sets the color space to DeviceCMYK (or the DefaultCMYK color space), and sets the color to use for filling paths.

This method is described in the 'Portable Document Format Reference Manual version 1.3' section 8.5.2.1 (page 331).

Following the PDF manual, each operand must be a number between 0 (no ink) and 1 (maximum ink). This method however accepts only ints between 0x00 and 0xFF.

Parameters

cyan	the intensity of cyan
magenta	the intensity of magenta
yellow	the intensity of yellow
black	the intensity of black

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetCMYKColorFillF()

virtual void iTextSharp.text.pdf.PdfContentByte.SetCMYKColorFillF ( float  cyan, float  magenta, float  yellow, float  black  )

virtual

Changes the current color for filling paths (device dependent colors!).

Sets the color space to DeviceCMYK (or the DefaultCMYK color space), and sets the color to use for filling paths.

Following the PDF manual, each operand must be a number between 0 (no ink) and 1 (maximum ink).

Parameters

cyan	the intensity of cyan. A value between 0 and 1
magenta	the intensity of magenta. A value between 0 and 1
yellow	the intensity of yellow. A value between 0 and 1
black	the intensity of black. A value between 0 and 1

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetCMYKColorStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.SetCMYKColorStroke ( int  cyan, int  magenta, int  yellow, int  black  )

virtual

Changes the current color for stroking paths (device dependent colors!).

Sets the color space to DeviceCMYK (or the DefaultCMYK color space), and sets the color to use for stroking paths.

This method is described in the 'Portable Document Format Reference Manual version 1.3' section 8.5.2.1 (page 331).

Following the PDF manual, each operand must be a number between 0 (miniumum intensity) and 1 (maximum intensity). This method however accepts only ints between 0x00 and 0xFF.

Parameters

cyan	the intensity of red
magenta	the intensity of green
yellow	the intensity of blue
black	the intensity of black

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetCMYKColorStrokeF()

virtual void iTextSharp.text.pdf.PdfContentByte.SetCMYKColorStrokeF ( float  cyan, float  magenta, float  yellow, float  black  )

virtual

Changes the current color for stroking paths (device dependent colors!).

Sets the color space to DeviceCMYK (or the DefaultCMYK color space), and sets the color to use for stroking paths.

Following the PDF manual, each operand must be a number between 0 (miniumum intensity) and 1 (maximum intensity).

Parameters

cyan	the intensity of cyan. A value between 0 and 1
magenta	the intensity of magenta. A value between 0 and 1
yellow	the intensity of yellow. A value between 0 and 1
black	the intensity of black. A value between 0 and 1

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetColorFill() [1/2]

virtual void iTextSharp.text.pdf.PdfContentByte.SetColorFill ( Color  value )

virtual

Sets the fill color. color can be an ExtendedColor.

Parameters

color

the color

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetColorFill() [2/2]

virtual void iTextSharp.text.pdf.PdfContentByte.SetColorFill ( PdfSpotColor  sp, float  tint  )

virtual

Sets the fill color to a spot color.

Parameters

sp	the spot color
tint	the tint for the spot color. 0 is no color and 1 is 100% color

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter, and iTextSharp.text.pdf.PdfImportedPage.

SetColorStroke() [1/2]

virtual void iTextSharp.text.pdf.PdfContentByte.SetColorStroke ( Color  value )

virtual

Sets the stroke color. color can be an ExtendedColor.

Parameters

color

the color

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetColorStroke() [2/2]

virtual void iTextSharp.text.pdf.PdfContentByte.SetColorStroke ( PdfSpotColor  sp, float  tint  )

virtual

Sets the stroke color to a spot color.

Parameters

sp	the spot color
tint	the tint for the spot color. 0 is no color and 1 is 100% color

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter, and iTextSharp.text.pdf.PdfImportedPage.

SetDefaultColorspace()

virtual void iTextSharp.text.pdf.PdfContentByte.SetDefaultColorspace ( PdfName  name, PdfObject  obj  )

virtual

Sets the default colorspace.

Parameters

name	the name of the colorspace. It can be PdfName.DEFAULTGRAY, PdfName.DEFAULTRGB or PdfName.DEFAULTCMYK
obj	the colorspace. A null or PdfNull removes any colorspace with the same name

SetFlatness()

void iTextSharp.text.pdf.PdfContentByte.SetFlatness

(

float

value

)

Changes the Flatness.

Flatness sets the maximum permitted distance in device pixels between the mathematically correct path and an approximation constructed from straight line segments.

Parameters

flatness

a value

SetFontAndSize()

virtual void iTextSharp.text.pdf.PdfContentByte.SetFontAndSize ( BaseFont  bf, float  size  )

virtual

Set the font and the size for the subsequent text writing.

Parameters

bf	the font
size	the font size in points

Reimplemented in iTextSharp.text.pdf.PdfImportedPage, and iTextSharp.text.pdf.PdfAppearance.

SetGrayFill()

virtual void iTextSharp.text.pdf.PdfContentByte.SetGrayFill ( float  value )

virtual

Changes the currentgray tint for filling paths (device dependent colors!).

Sets the color space to DeviceGray (or the DefaultGray color space), and sets the gray tint to use for filling paths.

Parameters

gray	a value between 0 (black) and 1 (white)

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetGrayStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.SetGrayStroke ( float  value )

virtual

Changes the currentgray tint for stroking paths (device dependent colors!).

Sets the color space to DeviceGray (or the DefaultGray color space), and sets the gray tint to use for stroking paths.

Parameters

gray	a value between 0 (black) and 1 (white)

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetGState()

void iTextSharp.text.pdf.PdfContentByte.SetGState

(

PdfGState

gstate

)

Sets the graphic state

Parameters

gstate

the graphic state

SetHorizontalScaling()

void iTextSharp.text.pdf.PdfContentByte.SetHorizontalScaling

(

float

value

)

Sets the horizontal scaling parameter.

Parameters

scale

a parameter

SetLeading()

void iTextSharp.text.pdf.PdfContentByte.SetLeading

(

float

v

)

SetLineCap()

void iTextSharp.text.pdf.PdfContentByte.SetLineCap

(

int

value

)

Changes the Line cap style.

The line cap style specifies the shape to be used at the end of open subpaths when they are stroked.
Allowed values are 0 (Butt end caps), 1 (Round end caps) and 2 (Projecting square end caps).

Parameters

style

a value

SetLineDash() [1/4]

void iTextSharp.text.pdf.PdfContentByte.SetLineDash	(	float	unitsOn,
		float	phase
	)

Changes the value of the line dash pattern.

The line dash pattern controls the pattern of dashes and gaps used to stroke paths. It is specified by an array and a phase. The array specifies the length of the alternating dashes and gaps. The phase specifies the distance into the dash pattern to start the dash.

Parameters

phase	the value of the phase
unitsOn	the number of units that must be 'on' (equals the number of units that must be 'off').

SetLineDash() [2/4]

void iTextSharp.text.pdf.PdfContentByte.SetLineDash	(	float	unitsOn,
		float	unitsOff,
		float	phase
	)

Changes the value of the line dash pattern.

The line dash pattern controls the pattern of dashes and gaps used to stroke paths. It is specified by an array and a phase. The array specifies the length of the alternating dashes and gaps. The phase specifies the distance into the dash pattern to start the dash.

Parameters

phase	the value of the phase
unitsOn	the number of units that must be 'on'
unitsOff	the number of units that must be 'off'

SetLineDash() [3/4]

void iTextSharp.text.pdf.PdfContentByte.SetLineDash

(

float

value

)

Changes the value of the line dash pattern.

The line dash pattern controls the pattern of dashes and gaps used to stroke paths. It is specified by an array and a phase. The array specifies the length of the alternating dashes and gaps. The phase specifies the distance into the dash pattern to start the dash.

Parameters

phase

the value of the phase

SetLineDash() [4/4]

void iTextSharp.text.pdf.PdfContentByte.SetLineDash	(	float[]	array,
		float	phase
	)

Changes the value of the line dash pattern.

The line dash pattern controls the pattern of dashes and gaps used to stroke paths. It is specified by an array and a phase. The array specifies the length of the alternating dashes and gaps. The phase specifies the distance into the dash pattern to start the dash.

Parameters

array	length of the alternating dashes and gaps
phase	the value of the phase

SetLineJoin()

void iTextSharp.text.pdf.PdfContentByte.SetLineJoin

(

int

value

)

Changes the Line join style.

The line join style specifies the shape to be used at the corners of paths that are stroked.
Allowed values are 0 (Miter joins), 1 (Round joins) and 2 (Bevel joins).

Parameters

style

a value

SetLineWidth()

void iTextSharp.text.pdf.PdfContentByte.SetLineWidth

(

float

value

)

Changes the line width.

The line width specifies the thickness of the line used to stroke a path and is measured in used space units.

Parameters

w

a width

SetLiteral() [1/3]

void iTextSharp.text.pdf.PdfContentByte.SetLiteral

(

char

c

)

Outputs a char directly to the content.

Parameters

c

the char

SetLiteral() [2/3]

void iTextSharp.text.pdf.PdfContentByte.SetLiteral

(

float

n

)

Outputs a float directly to the content.

Parameters

n

the float

SetLiteral() [3/3]

void iTextSharp.text.pdf.PdfContentByte.SetLiteral

(

string

s

)

Outputs a string directly to the content.

Parameters

s	the string

SetMiterLimit()

void iTextSharp.text.pdf.PdfContentByte.SetMiterLimit

(

float

value

)

Changes the Miter limit.

When two line segments meet at a sharp angle and mitered joins have been specified as the line join style, it is possible for the miter to extend far beyond the thickness of the line stroking path. The miter limit imposes a maximum on the ratio of the miter length to the line witdh. When the limit is exceeded, the join is converted from a miter to a bevel.

Parameters

miterLimit

a miter limit

SetPatternFill() [1/3]

virtual void iTextSharp.text.pdf.PdfContentByte.SetPatternFill ( PdfPatternPainter  p )

virtual

Sets the fill color to a pattern. The pattern can be colored or uncolored.

Parameters

p	the pattern

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetPatternFill() [2/3]

virtual void iTextSharp.text.pdf.PdfContentByte.SetPatternFill ( PdfPatternPainter  p, Color  color  )

virtual

Sets the fill color to an uncolored pattern.

Parameters

p	the pattern
color	the color of the pattern

SetPatternFill() [3/3]

virtual void iTextSharp.text.pdf.PdfContentByte.SetPatternFill ( PdfPatternPainter  p, Color  color, float  tint  )

virtual

Sets the fill color to an uncolored pattern.

Parameters

p	the pattern
color	the color of the pattern
tint	the tint if the color is a spot color, ignored otherwise

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetPatternStroke() [1/3]

virtual void iTextSharp.text.pdf.PdfContentByte.SetPatternStroke ( PdfPatternPainter  p )

virtual

Sets the stroke color to a pattern. The pattern can be colored or uncolored.

Parameters

p	the pattern

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetPatternStroke() [2/3]

virtual void iTextSharp.text.pdf.PdfContentByte.SetPatternStroke ( PdfPatternPainter  p, Color  color  )

virtual

Sets the stroke color to an uncolored pattern.

Parameters

p	the pattern
color	the color of the pattern

SetPatternStroke() [3/3]

virtual void iTextSharp.text.pdf.PdfContentByte.SetPatternStroke ( PdfPatternPainter  p, Color  color, float  tint  )

virtual

Sets the stroke color to an uncolored pattern.

Parameters

p	the pattern
color	the color of the pattern
tint	the tint if the color is a spot color, ignored otherwise

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetRGBColorFill()

virtual void iTextSharp.text.pdf.PdfContentByte.SetRGBColorFill ( int  red, int  green, int  blue  )

virtual

Changes the current color for filling paths (device dependent colors!).

Sets the color space to DeviceRGB (or the DefaultRGB color space), and sets the color to use for filling paths.

This method is described in the 'Portable Document Format Reference Manual version 1.3' section 8.5.2.1 (page 331).

Following the PDF manual, each operand must be a number between 0 (miniumum intensity) and 1 (maximum intensity). This method however accepts only ints between 0x00 and 0xFF.

Parameters

red	the intensity of red
green	the intensity of green
blue	the intensity of blue

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetRGBColorFillF()

virtual void iTextSharp.text.pdf.PdfContentByte.SetRGBColorFillF ( float  red, float  green, float  blue  )

virtual

Changes the current color for filling paths (device dependent colors!).

Sets the color space to DeviceRGB (or the DefaultRGB color space), and sets the color to use for filling paths.

Following the PDF manual, each operand must be a number between 0 (minimum intensity) and 1 (maximum intensity).

Parameters

red	the intensity of red. A value between 0 and 1
green	the intensity of green. A value between 0 and 1
blue	the intensity of blue. A value between 0 and 1

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetRGBColorStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.SetRGBColorStroke ( int  red, int  green, int  blue  )

virtual

Changes the current color for stroking paths (device dependent colors!).

Sets the color space to DeviceRGB (or the DefaultRGB color space), and sets the color to use for stroking paths.

This method is described in the 'Portable Document Format Reference Manual version 1.3' section 8.5.2.1 (page 331).

Following the PDF manual, each operand must be a number between 0 (miniumum intensity) and 1 (maximum intensity). This method however accepts only ints between 0x00 and 0xFF.

Parameters

red	the intensity of red
green	the intensity of green
blue	the intensity of blue

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetRGBColorStrokeF()

virtual void iTextSharp.text.pdf.PdfContentByte.SetRGBColorStrokeF ( float  red, float  green, float  blue  )

virtual

Changes the current color for stroking paths (device dependent colors!).

Sets the color space to DeviceRGB (or the DefaultRGB color space), and sets the color to use for stroking paths.

Following the PDF manual, each operand must be a number between 0 (miniumum intensity) and 1 (maximum intensity).

Parameters

red	the intensity of red. A value between 0 and 1
green	the intensity of green. A value between 0 and 1
blue	the intensity of blue. A value between 0 and 1

Reimplemented in iTextSharp.text.pdf.PdfPatternPainter.

SetShadingFill()

virtual void iTextSharp.text.pdf.PdfContentByte.SetShadingFill ( PdfShadingPattern  shading )

virtual

Sets the shading fill pattern.

Parameters

shading

the shading pattern

SetShadingStroke()

virtual void iTextSharp.text.pdf.PdfContentByte.SetShadingStroke ( PdfShadingPattern  shading )

virtual

Sets the shading stroke pattern

Parameters

shading

the shading pattern

SetTextMatrix() [1/2]

void iTextSharp.text.pdf.PdfContentByte.SetTextMatrix	(	float	a,
		float	b,
		float	c,
		float	d,
		float	x,
		float	y
	)

Changes the text matrix.

Remark: this operation also initializes the current point position.

Parameters

a	operand 1,1 in the matrix
b	operand 1,2 in the matrix
c	operand 2,1 in the matrix
d	operand 2,2 in the matrix
x	operand 3,1 in the matrix
y	operand 3,2 in the matrix

SetTextMatrix() [2/2]

void iTextSharp.text.pdf.PdfContentByte.SetTextMatrix	(	float	x,
		float	y
	)

Changes the text matrix. The first four parameters are {1,0,0,1}.

Remark: this operation also initializes the current point position.

Parameters

x	operand 3,1 in the matrix
y	operand 3,2 in the matrix

SetTextRenderingMode()

void iTextSharp.text.pdf.PdfContentByte.SetTextRenderingMode

(

int

value

)

Sets the text rendering parameter.

Parameters

rendering

a parameter

SetTextRise()

void iTextSharp.text.pdf.PdfContentByte.SetTextRise

(

float

value

)

Sets the text rise parameter.

This allows to write text in subscript or basescript mode.

Parameters

rise	a parameter

SetWordSpacing()

void iTextSharp.text.pdf.PdfContentByte.SetWordSpacing

(

float

value

)

Sets the word spacing parameter.

Parameters

wordSpace

a parameter

ShowText() [1/2]

void iTextSharp.text.pdf.PdfContentByte.ShowText

(

PdfTextArray

text

)

Show an array of text.

Parameters

text	array of text

ShowText() [2/2]

void iTextSharp.text.pdf.PdfContentByte.ShowText

(

string

text

)

Shows the text.

Parameters

text	the text to write

ShowTextAligned()

void iTextSharp.text.pdf.PdfContentByte.ShowTextAligned	(	int	alignment,
		String	text,
		float	x,
		float	y,
		float	rotation
	)

Shows text right, left or center aligned with rotation.

Parameters

alignment	the alignment can be ALIGN_CENTER, ALIGN_RIGHT or ALIGN_LEFT
text	the text to show
x	the x pivot position
y	the y pivot position
rotation	the rotation to be applied in degrees counterclockwise

ShowTextAlignedKerned()

void iTextSharp.text.pdf.PdfContentByte.ShowTextAlignedKerned	(	int	alignment,
		String	text,
		float	x,
		float	y,
		float	rotation
	)

Shows text kerned right, left or center aligned with rotation.

Parameters

alignment	the alignment can be ALIGN_CENTER, ALIGN_RIGHT or ALIGN_LEFT
text	the text to show
x	the x pivot position
y	the y pivot position
rotation	the rotation to be applied in degrees counterclockwise

ShowTextKerned()

void iTextSharp.text.pdf.PdfContentByte.ShowTextKerned

(

String

text

)

Shows the text kerned.

Parameters

text	the text to write

Stroke()

void iTextSharp.text.pdf.PdfContentByte.Stroke

(

)

Strokes the path.

ToPdf()

byte [] iTextSharp.text.pdf.PdfContentByte.ToPdf

(

PdfWriter

writer

)

Returns the PDF representation of this PdfContentByte-object.

Parameters

writer

the PdfWriter

Returns

a byte array with the representation

ToString()

override string iTextSharp.text.pdf.PdfContentByte.ToString

(

)

Returns the string representation of this PdfContentByte-object.

Returns

a string

Transform()

void iTextSharp.text.pdf.PdfContentByte.Transform

(

System.Drawing.Drawing2D.Matrix

tx

)

VariableRectangle()

void iTextSharp.text.pdf.PdfContentByte.VariableRectangle

(

Rectangle

rect

)

Adds a variable width border to the current path. Only use if Rectangle.isUseVariableBorders = true.

Parameters

rect	a Rectangle

Member Data Documentation

ALIGN_CENTER

const int iTextSharp.text.pdf.PdfContentByte.ALIGN_CENTER = Element.ALIGN_CENTER

static

The alignement is center

ALIGN_LEFT

const int iTextSharp.text.pdf.PdfContentByte.ALIGN_LEFT = Element.ALIGN_LEFT

static

The alignement is left

ALIGN_RIGHT

const int iTextSharp.text.pdf.PdfContentByte.ALIGN_RIGHT = Element.ALIGN_RIGHT

static

The alignement is right

content

ByteBuffer iTextSharp.text.pdf.PdfContentByte.content = new ByteBuffer()

protected

This is the actual content

layerDepth

ArrayList iTextSharp.text.pdf.PdfContentByte.layerDepth

protected

The list were we save/restore the layer depth

LINE_CAP_BUTT

const int iTextSharp.text.pdf.PdfContentByte.LINE_CAP_BUTT = 0

static

A possible line cap value

LINE_CAP_PROJECTING_SQUARE

const int iTextSharp.text.pdf.PdfContentByte.LINE_CAP_PROJECTING_SQUARE = 2

static

A possible line cap value

LINE_CAP_ROUND

const int iTextSharp.text.pdf.PdfContentByte.LINE_CAP_ROUND = 1

static

A possible line cap value

LINE_JOIN_BEVEL

const int iTextSharp.text.pdf.PdfContentByte.LINE_JOIN_BEVEL = 2

static

A possible line join value

LINE_JOIN_MITER

const int iTextSharp.text.pdf.PdfContentByte.LINE_JOIN_MITER = 0

static

A possible line join value

LINE_JOIN_ROUND

const int iTextSharp.text.pdf.PdfContentByte.LINE_JOIN_ROUND = 1

static

A possible line join value

pdf

PdfDocument iTextSharp.text.pdf.PdfContentByte.pdf

protected

This is the PdfDocument

separator

int iTextSharp.text.pdf.PdfContentByte.separator = '\n'

protected

The separator between commands.

state

GraphicState iTextSharp.text.pdf.PdfContentByte.state = new GraphicState()

protected

This is the GraphicState in use

stateList

ArrayList iTextSharp.text.pdf.PdfContentByte.stateList = new ArrayList()

protected

The list were we save/restore the state

TEXT_RENDER_MODE_CLIP

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_CLIP = 7

static

A possible text rendering value

TEXT_RENDER_MODE_FILL

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_FILL = 0

static

A possible text rendering value

TEXT_RENDER_MODE_FILL_CLIP

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_FILL_CLIP = 4

static

A possible text rendering value

TEXT_RENDER_MODE_FILL_STROKE

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_FILL_STROKE = 2

static

A possible text rendering value

TEXT_RENDER_MODE_FILL_STROKE_CLIP

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_FILL_STROKE_CLIP = 6

static

A possible text rendering value

TEXT_RENDER_MODE_INVISIBLE

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_INVISIBLE = 3

static

A possible text rendering value

TEXT_RENDER_MODE_STROKE

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_STROKE = 1

static

A possible text rendering value

TEXT_RENDER_MODE_STROKE_CLIP

const int iTextSharp.text.pdf.PdfContentByte.TEXT_RENDER_MODE_STROKE_CLIP = 5

static

A possible text rendering value

writer

PdfWriter iTextSharp.text.pdf.PdfContentByte.writer

protected

This is the writer

Property Documentation

CharacterSpacing

float iTextSharp.text.pdf.PdfContentByte.CharacterSpacing

get

Gets the current character spacing.

Returns

the current character spacing

Duplicate

virtual PdfContentByte iTextSharp.text.pdf.PdfContentByte.Duplicate

get

Gets a duplicate of this PdfContentByte. All the members are copied by reference but the buffer stays different.

Returns

a copy of this PdfContentByte

HorizontalScaling

float iTextSharp.text.pdf.PdfContentByte.HorizontalScaling

get

Gets the current character spacing.

Returns

the current character spacing

InternalBuffer

ByteBuffer iTextSharp.text.pdf.PdfContentByte.InternalBuffer

get

Gets the internal buffer.

Returns

the internal buffer

Leading

float iTextSharp.text.pdf.PdfContentByte.Leading

get

Gets the current text leading.

Returns

the current text leading

PdfDocument

PdfDocument iTextSharp.text.pdf.PdfContentByte.PdfDocument

get

Gets the PdfDocument in use by this object.

Returns

the PdfDocument in use by this object

PdfWriter

PdfWriter iTextSharp.text.pdf.PdfContentByte.PdfWriter

get

Gets the PdfWriter in use by this object.

Returns

the PdfWriter in use by this object

RootOutline

PdfOutline iTextSharp.text.pdf.PdfContentByte.RootOutline

get

Gets the root outline.

Returns

the root outline

WordSpacing

float iTextSharp.text.pdf.PdfContentByte.WordSpacing

get

Gets the current word spacing.

Returns

the current word spacing

XTLM

float iTextSharp.text.pdf.PdfContentByte.XTLM

get

Gets the x position of the text line matrix.

Returns

the x position of the text line matrix

YTLM

float iTextSharp.text.pdf.PdfContentByte.YTLM

get

Gets the y position of the text line matrix.

Returns

the y position of the text line matrix

---

The documentation for this class was generated from the following file:

• src/core/iTextSharp/text/pdf/PdfContentByte.cs
